ELD2-RS70** User Manual
Chapter 2 Installation
2.1 Storage and Installation Circumstance
Table 2.1 Servo Driver, Servo Motor Storage Circumstance Requirement
Item
ELD2 series driver
ELDM low voltage servo motor
Temperature
-20-80℃
-25-70℃
Humility
Under 90%RH (free from condensation)
Under 80%RH(free from condensation)
Atmospheric
environment
Indoor(no exposure)no corrosive gas or
flammable gas, no oil or dust
Indoor(no exposure)no corrosive gas or
flammable gas, no oil or dust
Altitude
Lower than 1000m
Lower than 2500m
Vibration
Less than 0.5G (4.9m/s
2
) 10-60Hz (non-continuous working)
Protection
level
IP00(no protection)
IP54
Table 2.2 Servo Driver, Servo Motor Installation Circumstance Requirement
Item
ELD2 series driver
ELDM low voltage servo motor
Temperature
0-55℃
-25-40℃
Humility
Under 90%RH(free from condensation)
Under 90%RH(free from condensation)
Atmospheric
environment
Indoor(no exposure)no corrosive gas or
flammable gas, no oil or dust
Indoor(no exposure)no corrosive gas or
flammable gas, no oil or dust
Altitude
Lower than 1000m
Lower than 2500m
Vibration
Less than 0.5G (4.9m/s
2
) 10-60Hz (non-continuous working)
Protection
level
IP00(no protection)
IP54
2.2 Servo Driver Installation
Notice
⚫ Must install in control cabinet with sufficient safeguarding grade.
⚫ Must install with specified direction and intervals, and ensure good cooling condition.
⚫ Don’t install them on inflammable substance or near it to prevent fire hazard.
2.2.1 Installation Method
Install in vertical position ,and reserve enough space around the servo driver for ventilation.
Here is the installation diagram:

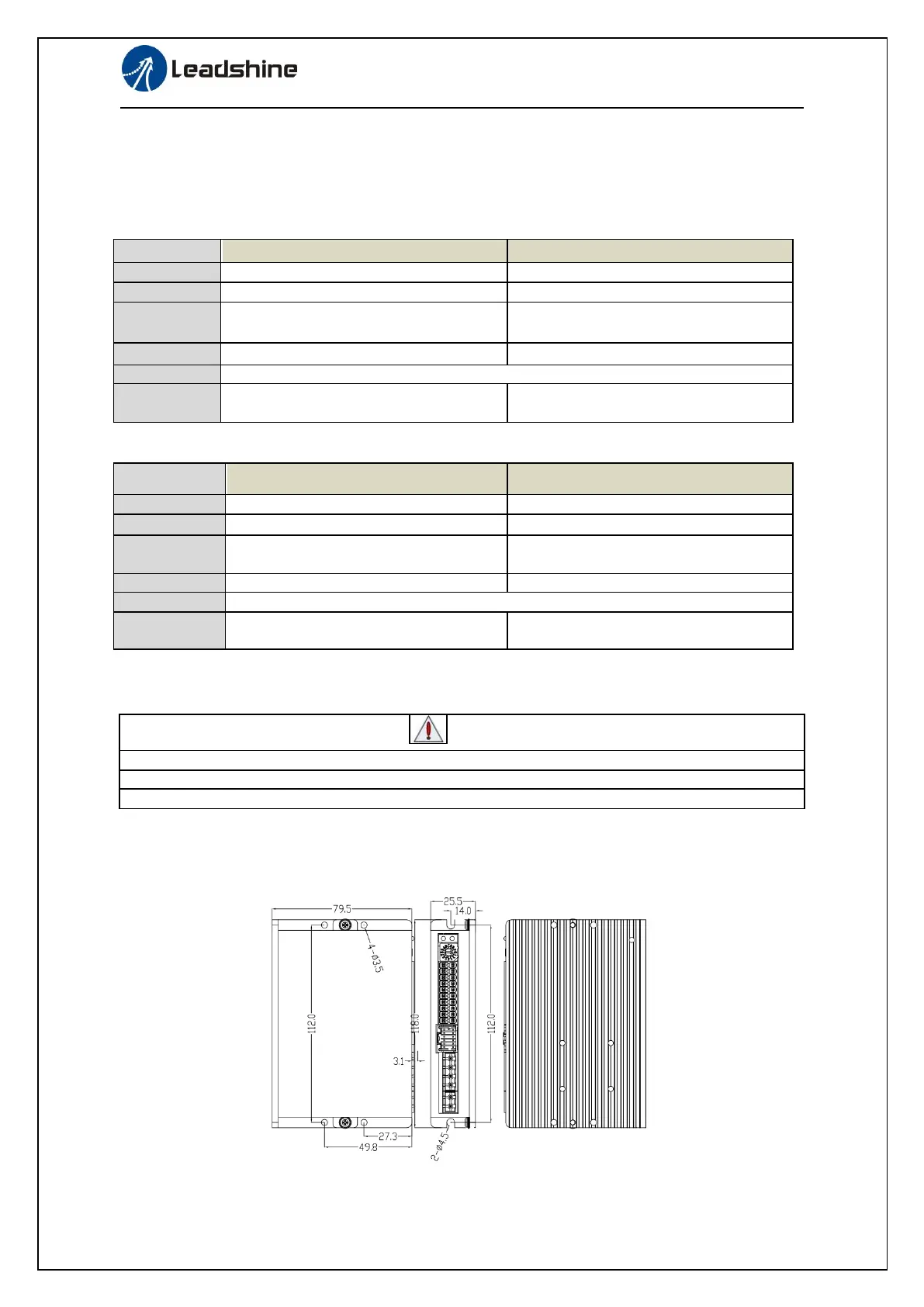

Figure 2.1(A) installation method of driver ELD2-RS7010
