For the convenience of the positioning model expressing, use mnemonic symbol to express, such as:
_P , ABS , SJ1 means that path is position addressing, position value is absolute position, jump to No.1
path with delay, and can not interrupt running.
!V , ABS , SJ1 means that path is speed running, jump to No.1 path with delay, and can interrupt
running.
_HOME means that path is homing movement.
_END means that path is E-stop.
5．Test run

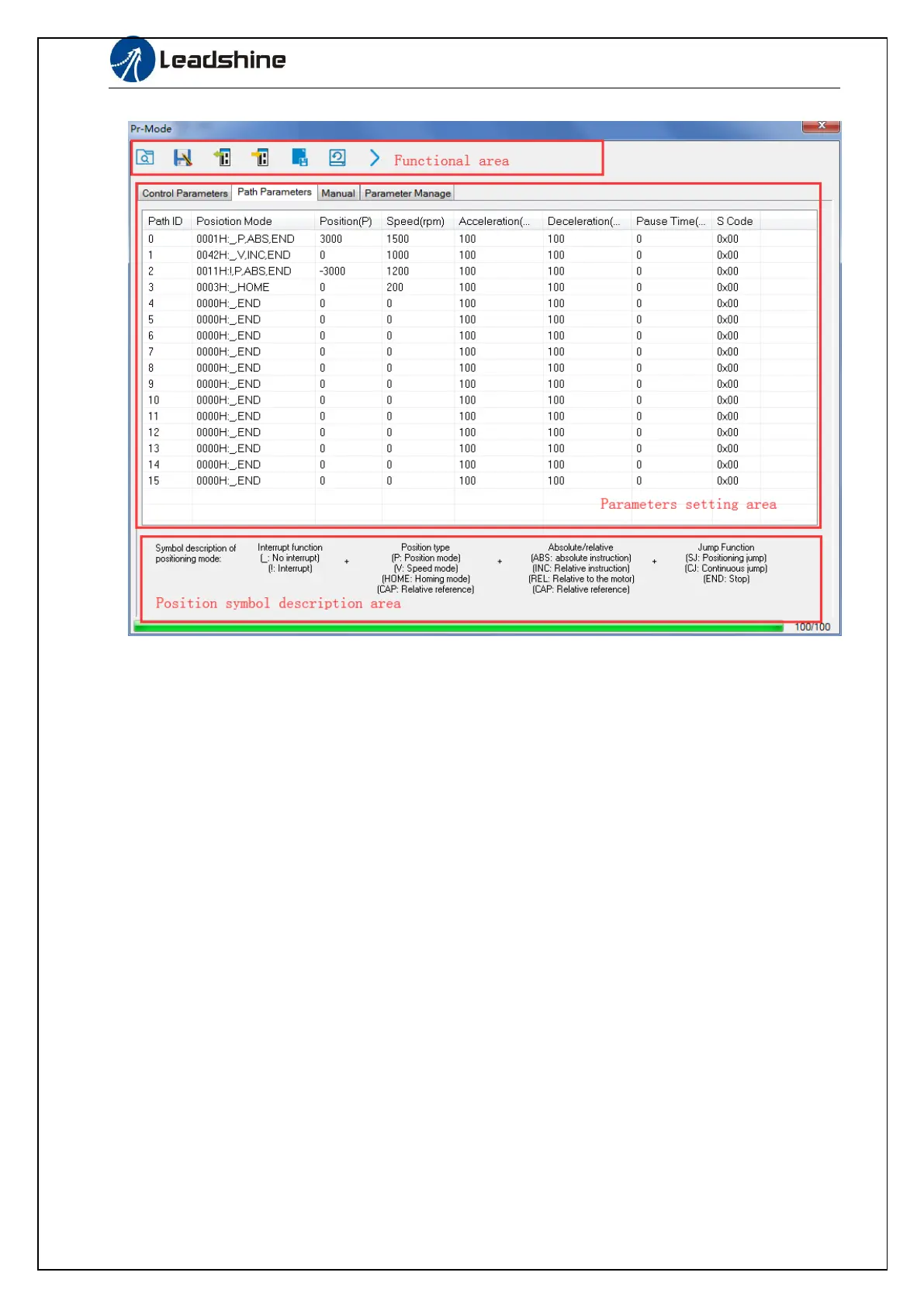

After confirming that the parameters are set correctly, the test begins. The interface is shown below
Click the number marked red in the figure and click start to run according to the speed in the path
parameter configuration diagram. Click the corresponding number and click to run at the configured speed. If
not, check that the parameters are set correctly
