46
UserManualforELD2Servo
Power line
connection error
UVW connection error Check connection of UVW
Over current
Over current
Use another driver with higher rated
power

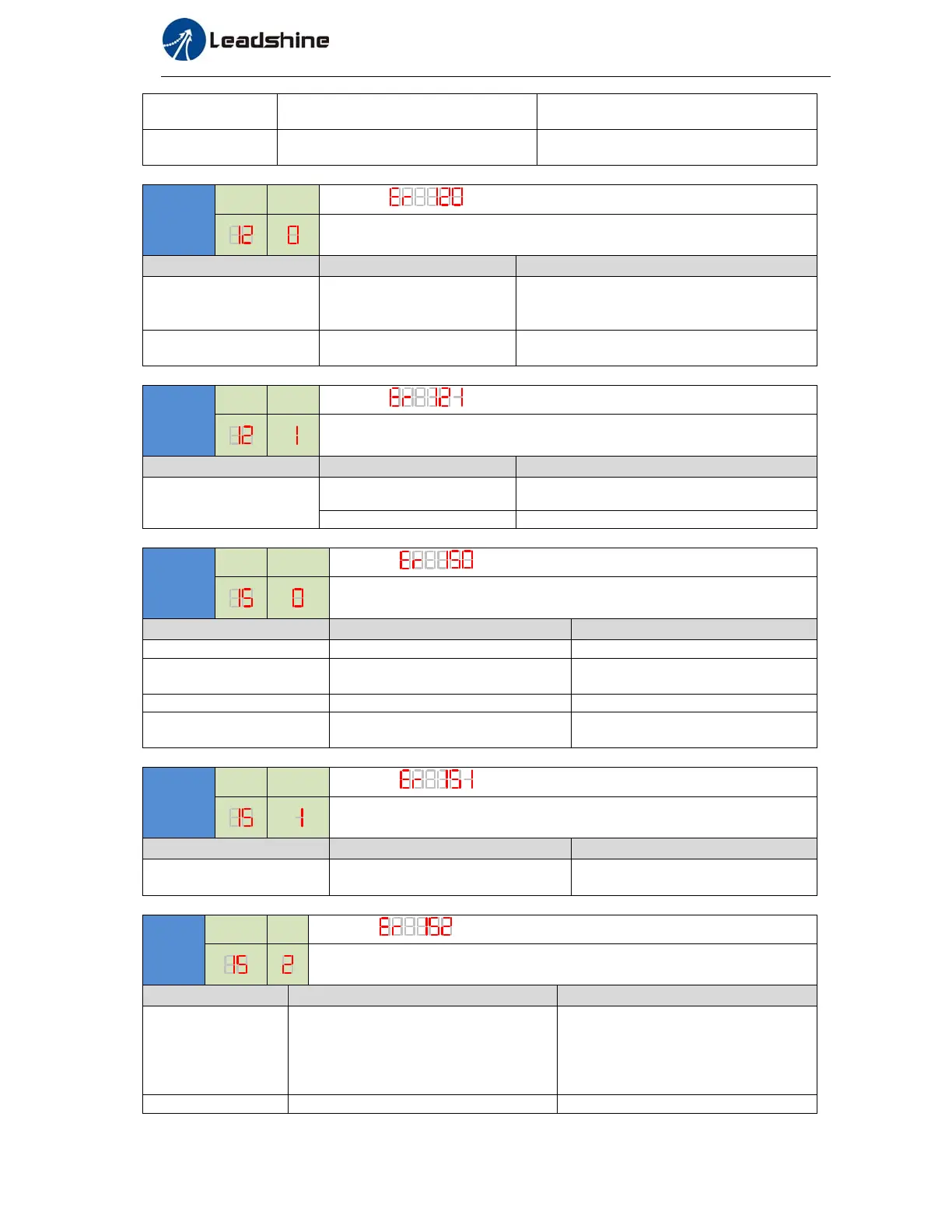

Error
code
Main Extra
Display:“
”
Content:Resistancedischargecircuitover‐load
Cause Confirmation Solution
Regenerative energy has
exceeded the capacity of
regenerative resistor .
Check the speed if it is too
high. Check the load if it is
too large or not.
lower motor rotational speed; decrease load
inertia ,increase external regenerative resistor,
improve the capacity of the driver and motor
Resistance discharge
circuit damage
/ Increase external regenerative resistor, replace
the driver with a new one
Error
code
Main Extra
Display:“
”
Content:Leakage triode malfunction
Cause Confirmation Solution
Brake circuit failure
Brake resistance short circuit repair
IGBT damaged repair
Error
code
Main Extra
Display:“
”
Content:encoderlinebreaked
Cause Confirmation Solution
Encoder line disconnected check wiring if it steady or not Make encoder wiring steady
Encoder wiring error
Check encoder wiring if it is correct
or not
Reconnect encoder wiring
Encoder damaged / replace the motor with a new one
Encoder measuring circuit
damaged
/ replace the driver with a new one
Error
code
Main Extra
Display:“
”
Content:Encoder communication error
Cause Confirmation Solution
Encoder communication
error
Interference is caused by noise
Error
code
Main
Extr
Display:“ ”
Content:initializedpositionofencodererror
Cause Confirmation Solution
Communication data
abnormal
Check encoder power voltage if it is
DC5V
5% or not; check encoder cable
and shielded line if it is damaged or not;
check encoder cable whether it is
intertwined with other power wire or not
Ensure power voltage of encoder
normally, ensure encoder cable and
shielded line well with FG ground,
ensure encoder cable separated with
other power wire
Encoder damaged /
eplace the motor with a new one
