49
UserManualforELD2Servo
if it is proper or not correctly


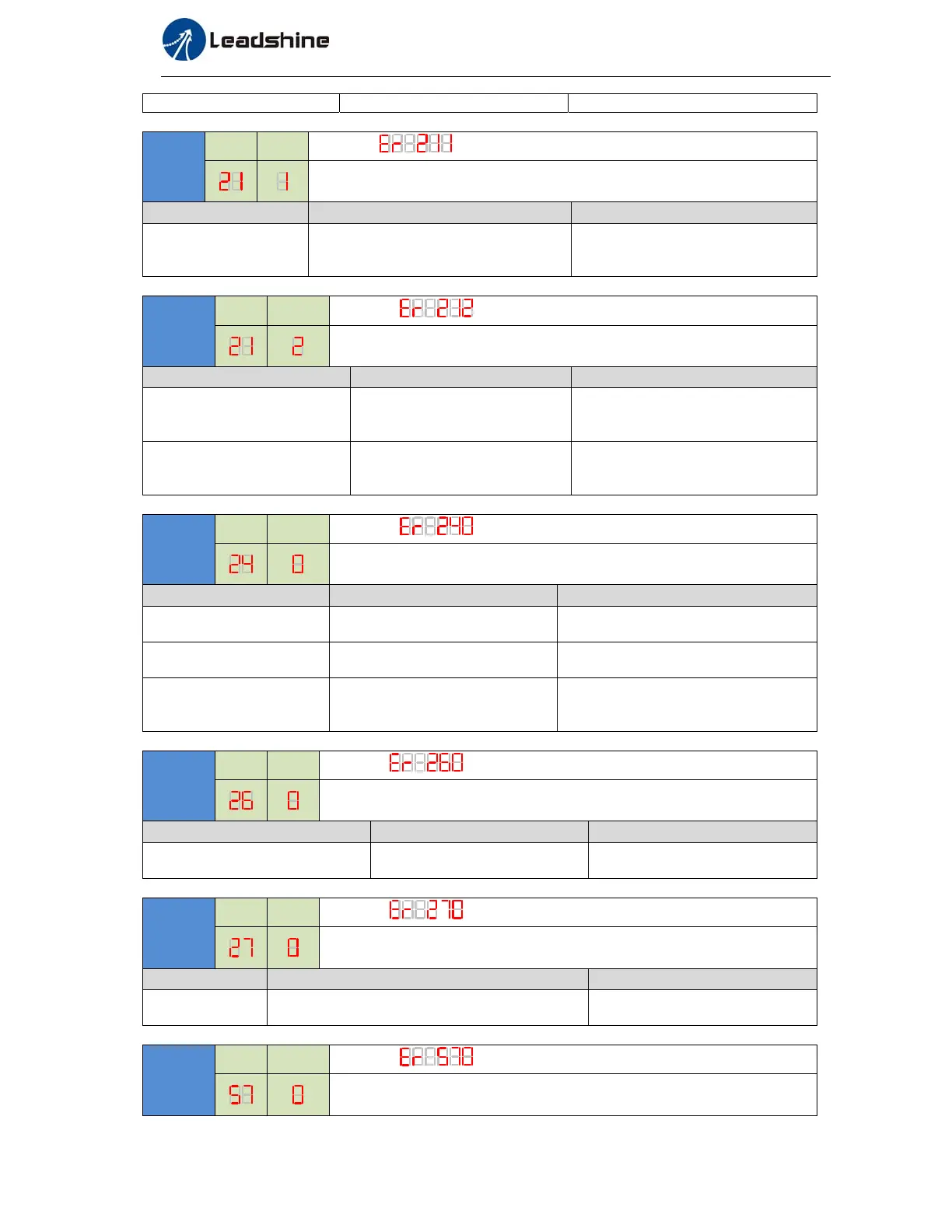

Error
code
Main Extra
Display:“
”
 
Content:I/F input interface function set error
Cause Confirmation Solution
Signal allocation error Check the value of PA_400, PA_401,
PA_402,PA_403,PA_404 if it is proper
or not
Assure the value of PA_400,
PA_401, PA_402, PA_403, PA_404
set correctly

Error
code
Main Extra
Display:“
”
 
Content: I/F input interface function set error
Cause Confirmation Solution
The input signal are assigned
with two or more functions.
Check the value of PA_410,
PA_411, PA_412, PA_413, if it is
proper or not
Assure the value of PA_410,
PA_411, PA_412,PA_413 set
correctly
The input signal aren’t
assigned with any functions.
Check the value of PA_410,
PA_411, PA_412, PA_413, if it is
proper or not
Assure the value of PA_410,
PA_411,PA_412,PA_413 set
correctly

Error
code
Main Extra
Display:“
”
 
Content: CRC verification error when EEPROM parameter is saved
Cause Confirmation Solution
Vdc/GND under-voltage Check the voltage of Vdc/GND
terminal
Make sure voltage of Vdc/GND in
proper range
Driver is damaged
save the parameters for several
times
replace the driver with a new one
The setting of driver maybe
default setting which isn’t
suitable for motor .
Check the setting of driver if it is
suitable for your motor
Download the suitable project file to
driver for motor

Error
code
Main Extra
Display:“
”
 
Content: positive negative over-travel input valid
Cause Confirmation Solution
positive /negative over-travelling
input signal has been conducted
Check the state of positive
negative over-travel input signal
/

Error
code
Main Extra
Display:“
”
Content:Analog value 1 input error limit
Cause Confirmation Solution
Analog value 1
input error limit
Analog value 1 input error limit

Error
code
Main Extra
Display:“
”
 
Content: forced alarm input valid
