LeCroy WAVESURFER User Manual

Operator's Manual
58 WS-OM-E Rev B

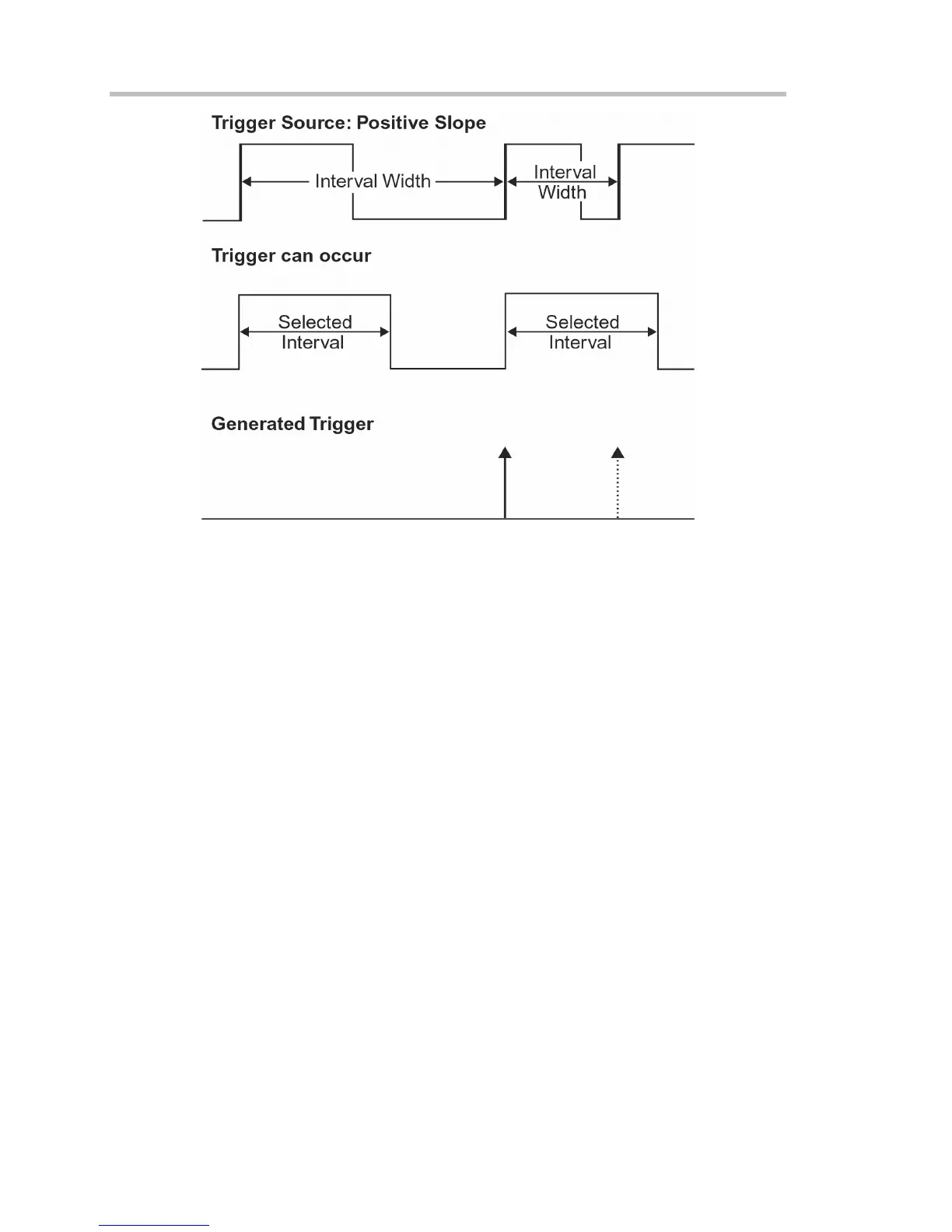

Interval Trigger that triggers when the interval width is larger than the set interval. The broken
upward-pointing arrow indicates a potential trigger, while the bold one shows where the actual
trigger occurs on the positive edge after the selected interval.
Interval In Range: This Interval Trigger is generated whenever an interval between two edges of
the same slope falls within a selected range. The instrument initializes and restarts the timing for
the interval whenever the selected edge occurs. You can set an interval from 2 ns to 20 s.

LeCroy WAVESURFER Specifications

General

Input Coupling	AC, DC, GND
Interface	USB, LAN, GPIB (optional)
Channels	4
Display	10.4" LCD
Vertical Resolution	8 bits
Input Impedance	1 MΩ || 50 Ω
Max Input Voltage	400 Vpk (1 MΩ)
Trigger Modes	Edge, Pattern
Bandwidth	200 MHz to 1 GHz
