OPERATOR’S CONTROL CONSOLE
3
10
1
6
5
8
4
7
2
11
9
12

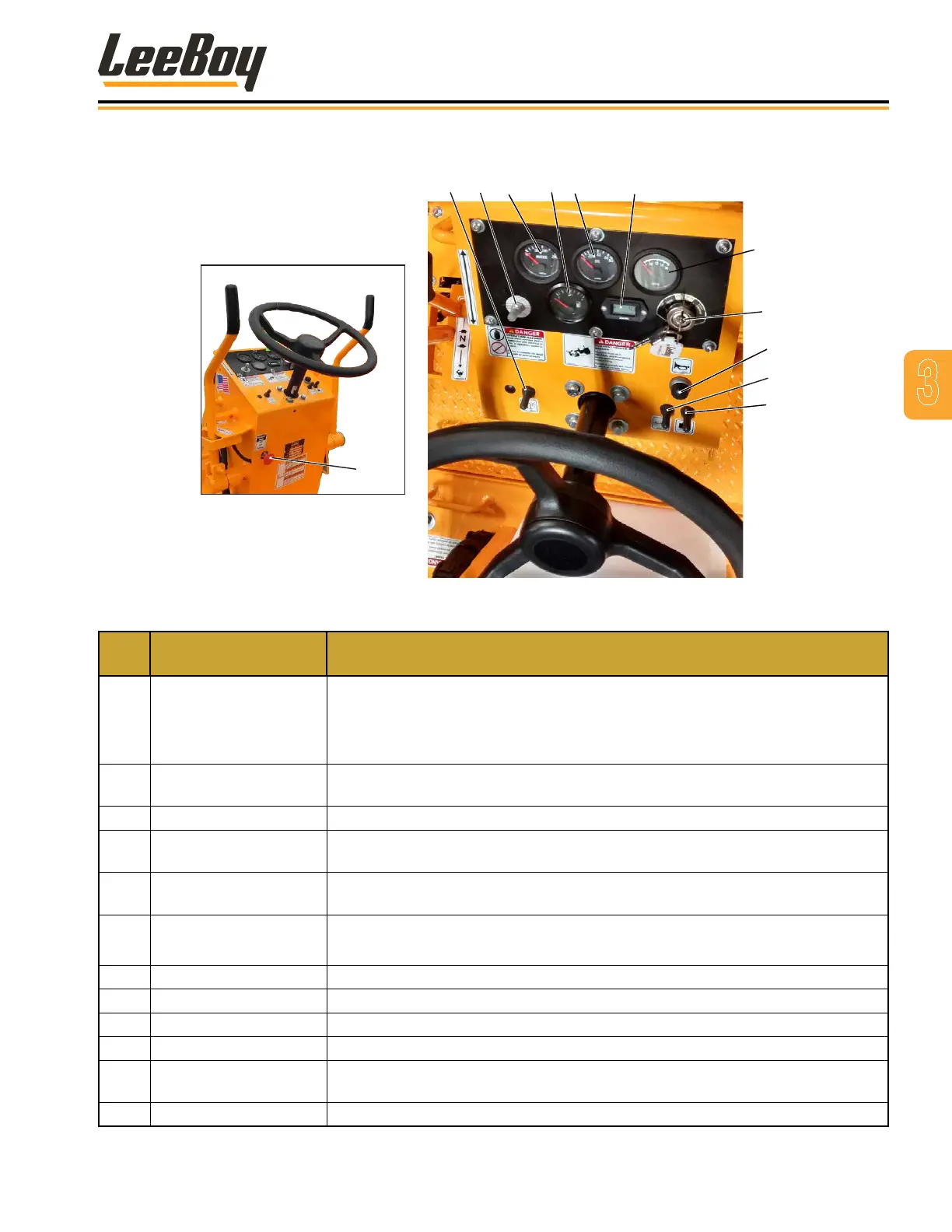

Figure 3-1. Operator’s Control Panel
ITEM
NO.
CONTROL NAME FUNCTION
1 Ignition Switch
Controls starting, running and shutting down machine. To start machine, insert
key and turn key clockwise to the START position.
To shut down machine, turn key counterclockwise to the OFF position and
remove key.
2
Temperature Gauge
(OPTION)
Displays engine coolant temperature.
3 Horn (OPTION) Sounds horn.
4
Oil Pressure Gauge
(OPTION)
Displays engine oil pressure in pounds per square inch (PSI).
5
Vibratory Rear Roller
Switch
This toggle switch controls the vibratory roller on the rear of the machine.
6 Gauge
STANDARD: Four (4) warning light clusters.
(OPTION) This gauge informs the operator of the current battery voltage.
7 Fuel Gauge (OPTION) Displays fuel level in the fuel tank.
8 Digital Usage Display Shows the total number of hours the machine has been in use.
9 Beacon Light This toggle switch turns the warning light on top of the canopy OFF and ON.
10 Water Sprayer Switch Controls the water spray nodules.
11
Safety Start Button
(OPTION)
Allows the operator to safely start the engine with low oil pressure.
12 Parking Brake Button Pull out and turn to apply or disengage parking brake.
3
Component Location
LeeBoy Model 400 & 400T Rollers 3-3
