DO NOT dry batteries using
compressed air. Allow the batteries and surrounding
area to dry. Battery acid can cause severe injury if
blown into the face or other areas of the body. If injury
occurs, seek medical attention immediately. Flush
eyes and skin for 30 minutes with clean water.
6. Make sure the battery cells are sealed. Clean the
batteries, battery tray, cables, and brackets with
baking soda and warm water. Allow to air dry.
7. Place the batteries in proper position in the battery tray.
8. Install hold down bar. Tighten bar to retain battery,
but not so tight as to damage battery.
When installing batteries, always
install the positive cable rst followed by the
negative cable. Reversed polarity can damage the
electrical system.
9. Install red (+) battery cable to the positive (+) battery
terminal. (Figure 5-16)
10. Install the black (-) battery cable to the negative (-)
battery terminal. (Figure 5-16).
11. Reattach the battery box cover and rehook battery
box locks.
Replace Valve Bank Assembly
(400T Only)
1. Refer to Section 7 (Illustrated Parts List), Page
7-44, for a complete breakdown of the valve
assembly parts.
2. Thoroughly clean the control valve and surrounding
area, especially around the hydraulic hoses and
ttings.
Valve Bank
Assembly

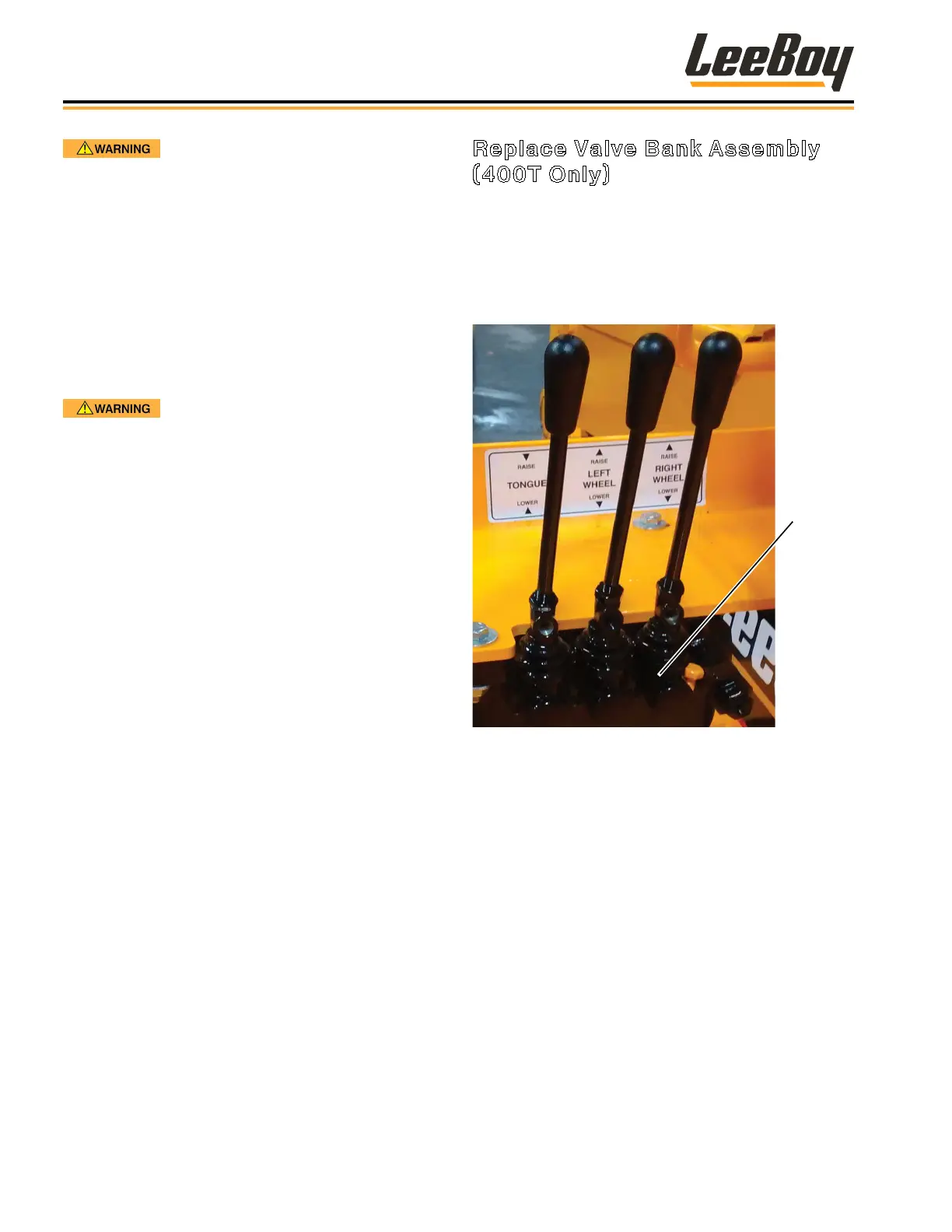

Figure 5-17. Valve Bank Assembly Location
3. Tag and disconnect hydraulic hoses. Immediately
plug the hoses and control valve ports to prevent
contamination of the hydraulic system.
4. Support the control valve and remove the control
valve mounting bolts and washers.
5. Remove the control valve assembly.
6. Inspect the control valve levers and linkages for
Maintenance
LeeBoy Model 400 & 400T Rollers5-18
