14.Thefailingsystemboardmustbereturnedwithamicroprocessorsocketcovertoprotectthepinsduring
shippingandhandling.Installthemicroprocessorsocketcoverremovedfromthenewsystemboardon
thefailingsystemboard.Toinstallamicroprocessorsocketcover:
a.Releasetheleversecuringthemicroprocessorretainerandopentheretainertoaccessthe
microprocessor.
b.Graspthemicroprocessoronthesidesandliftitstraightupandoutofthesocket.Donottouchthe
contactsonthemicroprocessorsocket.

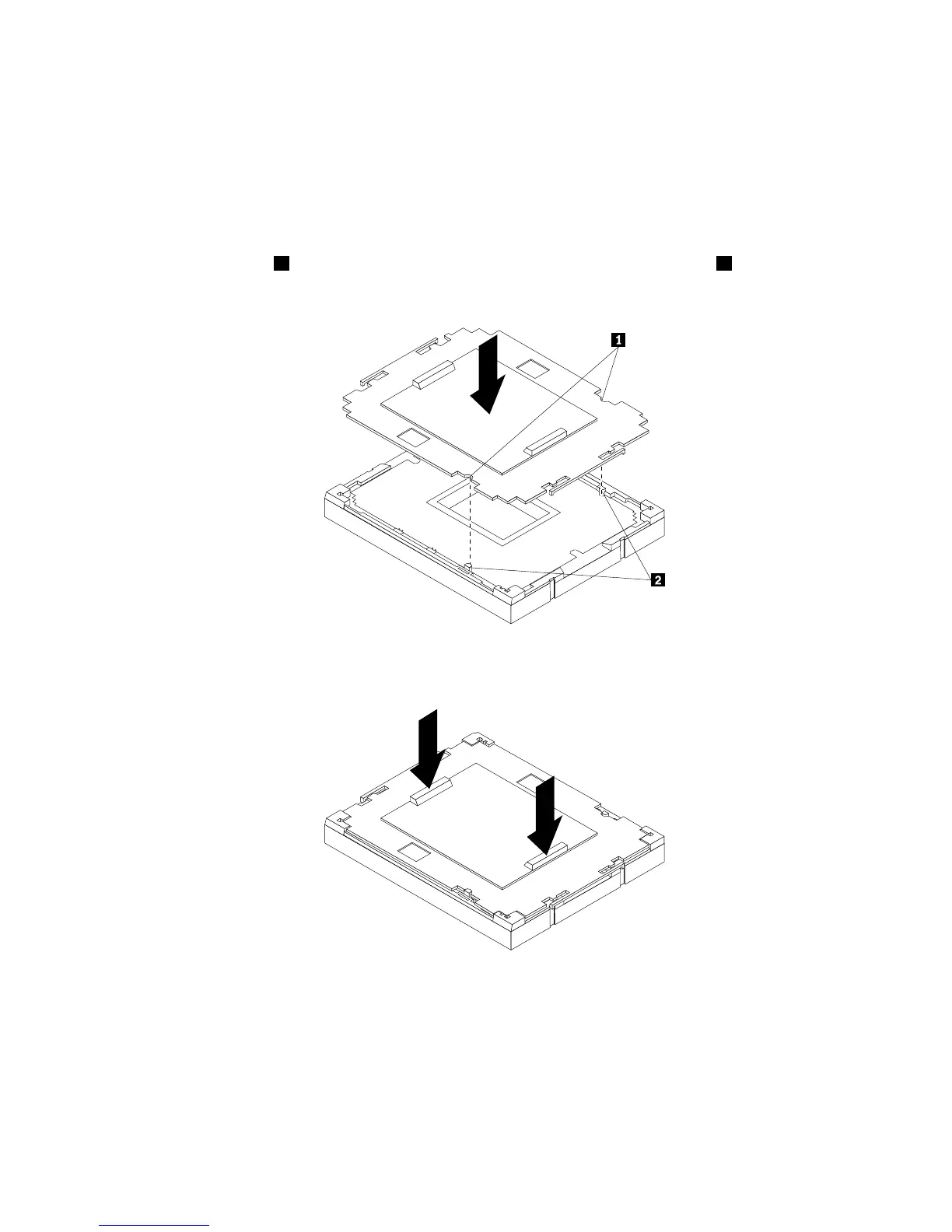

c.Alignthenotches1ofthemicroprocessorsocketcoverwiththealignmentkeys2ofthe
microprocessorsocket.Lowerthesocketcoverstraightdownintothemicroprocessorsocket
onthesystemboard.
Note:Yourmicroprocessorsocketandcovermightlookslightlydifferentfromtheillustration.
d.Carefullypressthesocketcoverstraightdownwardsuntilitissecuredintothesocket.
e.Lowerthemicroprocessorretainerandthenlowerthelevertosecuretheretainer.Makesurethe
leverissecurelylockedintoposition.
15.Ifyouareinstructedtoreturnthefailingsystemboard,followallpackaginginstructions,anduseany
packagingmaterialsthataresuppliedtoyouforshipping.
116ThinkServerTD230HardwareMaintenanceManual
