7.Pushtheharddiskdrivetoslidethebracketwiththeharddiskdriveintothedrivebayuntilitsnaps
intoposition.

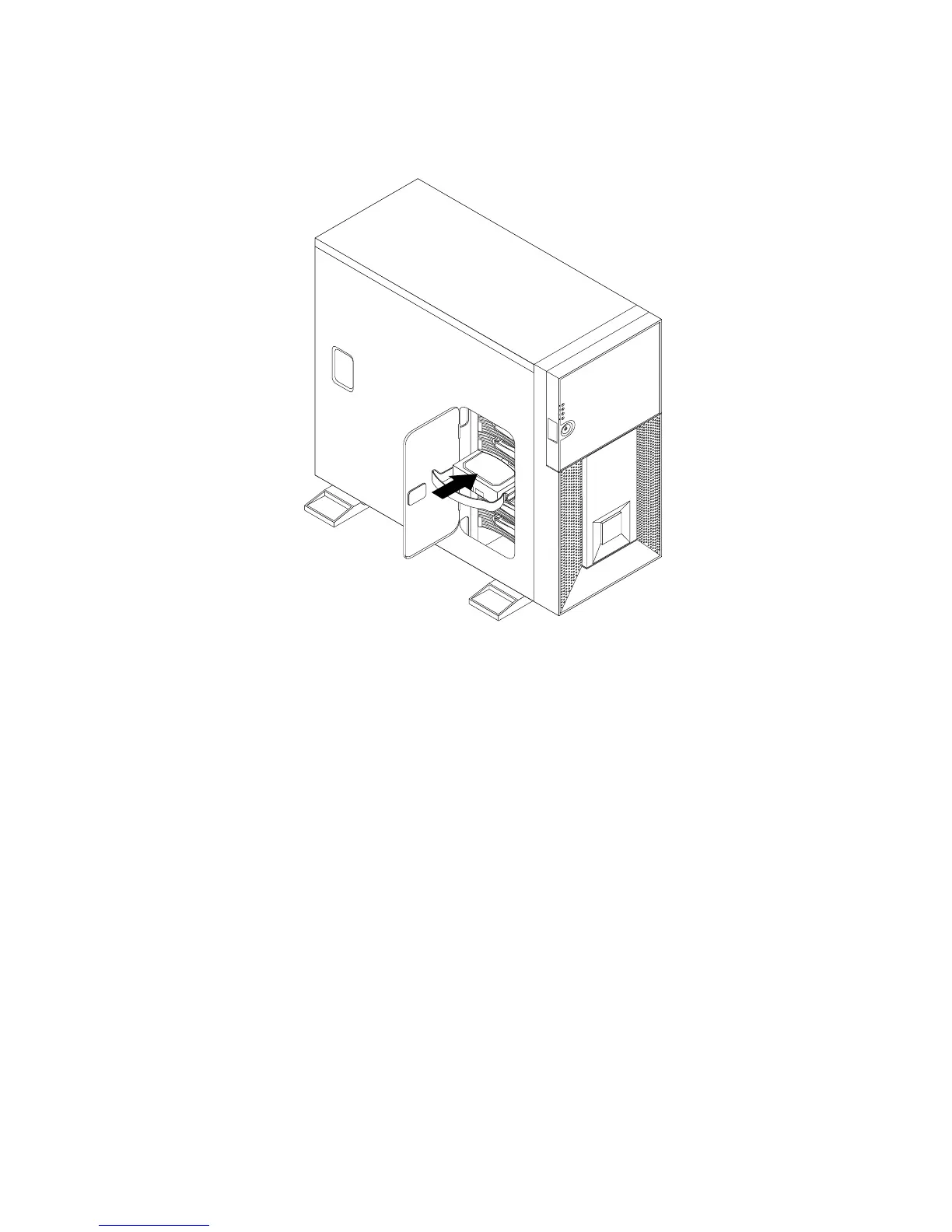

Figure43.Slidingthenon-hot-swapharddiskdriveintothebay
8.Locateanavailableve-wirepowerconnectorandanavailablesignalcableconnector.Then,connect
thepowercableandthesignalcabletotheharddiskdrive.
9.Tocompletetheinstallation,goto“Completingthepartsreplacement”onpage122.Then,youmight
needtochecktheharddiskdrivestatusLEDstomakesurethattheharddiskdriveisoperating
correctly.Restarttheserverforthenewlyinstalleddrivetoberecognized.Iftheamberharddiskdrive
statusLEDislitcontinuously,thisindicatesthattheharddiskdriveisfaultyandmustbereplaced;ifthe
greenharddiskdrivestatusLEDisblinking,thisindicatesthattheharddiskdriveisoperatingcorrectly.
Note:IftheserverisconguredforRAIDoperationusingaRAIDcontroller,youmighthaveto
recongurethediskarraysafteryoureplaceharddiskdrives.
InstallingorremovingaPCIcard
ThissectionprovidesinstructionsonhowtoinstallorremoveaPCIcard.
TheEMIintegrityandcoolingoftheserverareprotectedbyhavingalldrivebaysandPCIcardslotscovered
oroccupied.WhenyouinstalladriveorPCIcard,savetheEMCshieldordrivebayllerfromthedrivebay
orsavethePCIcardslotcoverintheeventthatyoulaterremovethedevice.Anunoccupieddrivebayor
PCIcardslotwithoutcover,shield,ller,oranyotherprotectionmightimpacttheEMIintegrityandcooling
oftheserver,whichmightresultinoverheatingorcomponentdamage.
Note:ThePCIcardsareextremelysensitivetoelectrostaticdischarge.Makesurethatyoureadand
understand“Handlingstatic-sensitivedevices”onpage40
rstandcarefullyperformtheoperation.
72ThinkServerTD230HardwareMaintenanceManual
