4.Pressthereleasetab1asshownandpivotthedrivebayassemblyupward.

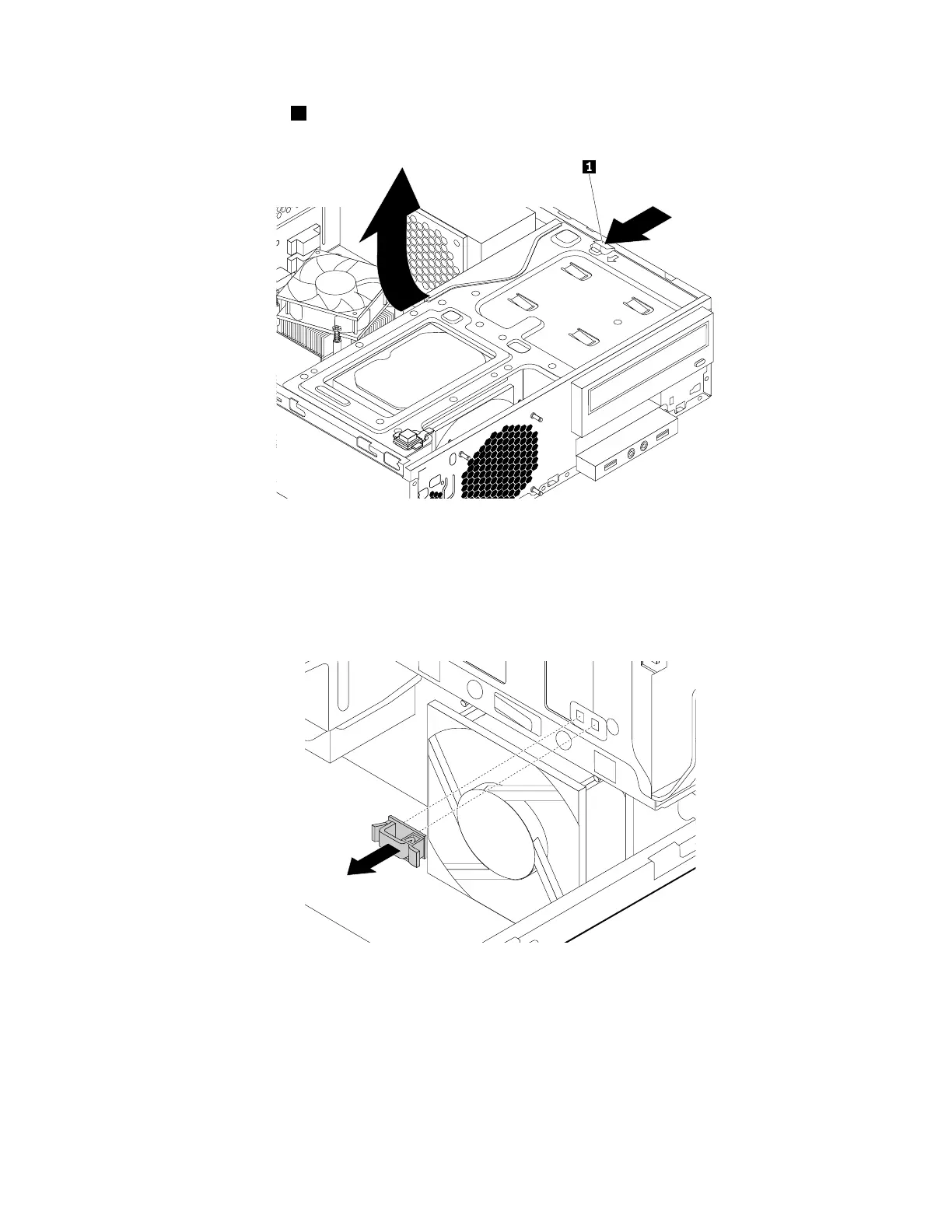

Figure108.Pivotingthedrivebayassemblyupward
5.Locatethesecondaryharddiskdrive.See“Internaldrives”onpage35.
6.Disconnectthesignalcableandthepowercablefromtheharddiskdrive.
7.Removethecablecliponthebottomoftheprimaryhard-disk-drivebayasshown.
Figure109.Removingthecableclip
Chapter9.Installingorreplacinghardware153
