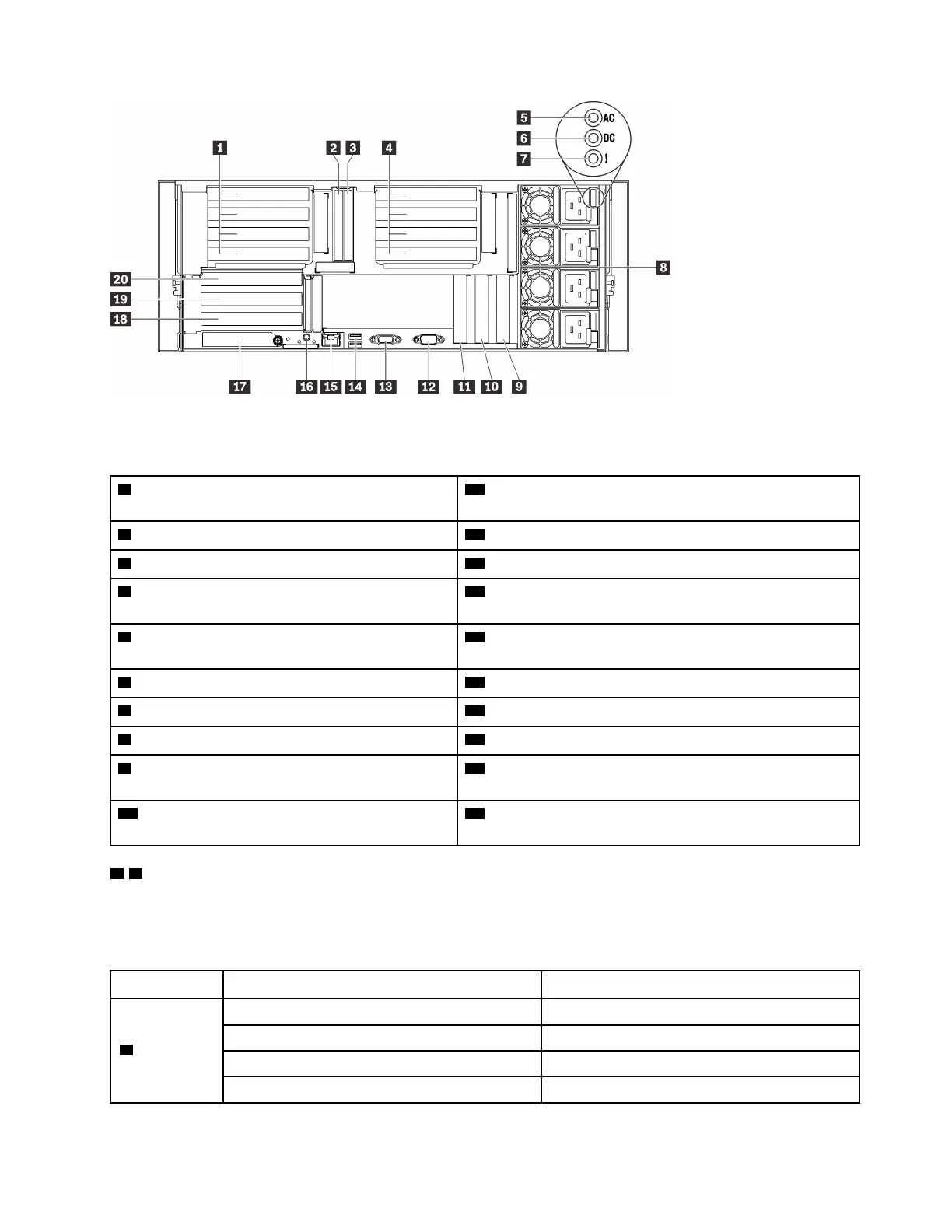

Figure 6. Rear view
Table 4. Components on the rear view
1
“4U PCIe Riser Cage” on page 23 (Riser cage
1, PCIe slot 1-4)
11
“PCI Express 3.0 x16” on page 24 (PCIe slot 13)
2
“7mm/M.2 drive bay” on page 24 (drive bay 0)
12
“Serial connector” on page 24
3
“7mm/M.2 drive bay” on page 24 (drive bay 1)
13
“VGA connector” on page 24
4
“4U PCIe Riser Cage” on page 23 (Riser cage
2, PCIe Slot 9-12)
14
“USB 3.1 connectors” on page 24
5
“AC power LED (green)” on page 24
15
“XClarity Clarity Controller network connector” on
page 25
6
“DC power LED (green)” on page 24
16
“NMI button” on page 25
7
“Power supply error LED (yellow)” on page 24
17
“OCP 3.0 Ethernet adapter” on page 25
8
“Power supply units” on page 24
18
“PCIe riser” on page 25 (PCIe slot 7)
9
“PCI Express 3.0 x8” on page 24 (PCIe slot
15)
19
“PCIe riser” on page 25 (PCIe slot 6)
10
“PCI Express 3.0 x8” on page 24 (PCIe slot
14)
20
“PCIe riser” on page 25 (PCIe slot 5)
1 / 4 4U PCIe Riser Cage
Install PCIe adapters into these riser cages. See the following table for PCIe slots corresponding to the riser
cages.
Table 5. 4U PCIe Riser Cages and corresponding PCIe slots
Riser cage type x8/x8/x8/x8 riser cage x16/x16 riser cage
1 Riser cage 1
Slot 1
NA
Slot 2 Slot 2
Slot 3
NA
Slot 4 Slot 4
Chapter 2. Server components 23
