5.1.3 Exchanging the communication module

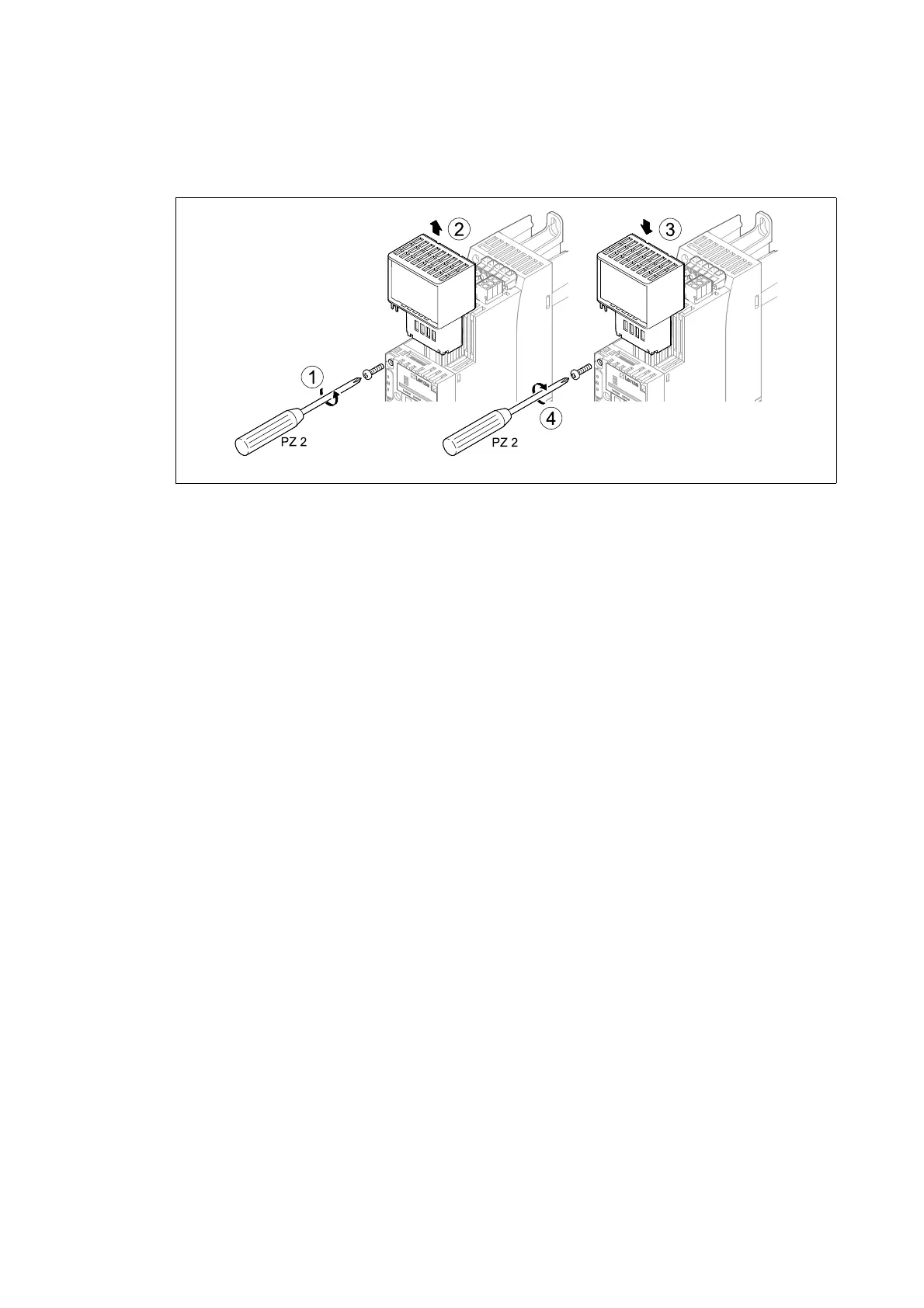

[5-3] Exchanging the communication module
Mounting steps
1. Loosen the securing screw for the communication module at the standard device (1).
2. Pull the communication module out of the MCI slot of the standard device (2).
3. Insert the new communication module into the MCI slot of the standard device (3).
4. Tighten the securing screw again (4).
E84YCPM002B
