6.4.2 Setting via codes in the »Engineer«

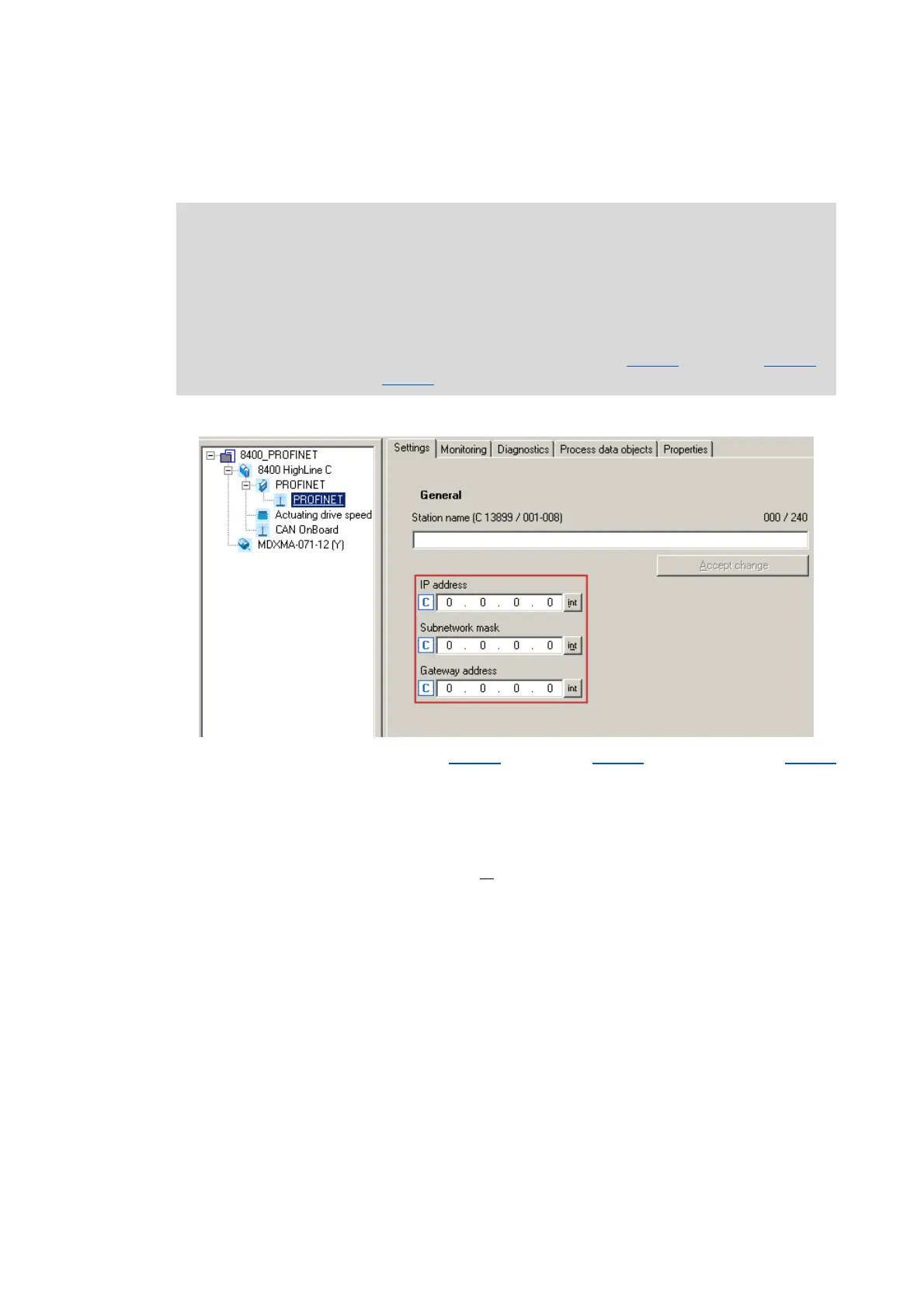

In the »Engineer« under the Settings tab you can set the IP parameters manually via code.
The IP parameters are written to codes C13000
(IP address), C13001 (subnet mask), and C13002
(gateway address).
 How to activate changed settings in the »Engineer«:
1. Execute the device command C00002 = "11: Save start parameters".
2. Carry out a "reset node" of the node, or
switch the voltage supply of the communication
module off and on again
 Note!
• The IP address must only be allocated manually in the »Engineer« if the PROFINET net-
work is not operated on the IO controller yet (IP address has not been allocated by the
IO controller yet).
• While setting the IP parameters in the »Engineer«, PROFINET communication with the
IO controller must not take place at the same time.
• The parameter values currently used are shown in codes C13010
(IP address), C13011
(subnet mask), and C13012
(gateway address).
