Lenze E84AYCER - Ethernet Cable Specification

Installation
Electrical installation
30
Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.2.4 Ethernet cable specification
Structure of the Ethernet cable

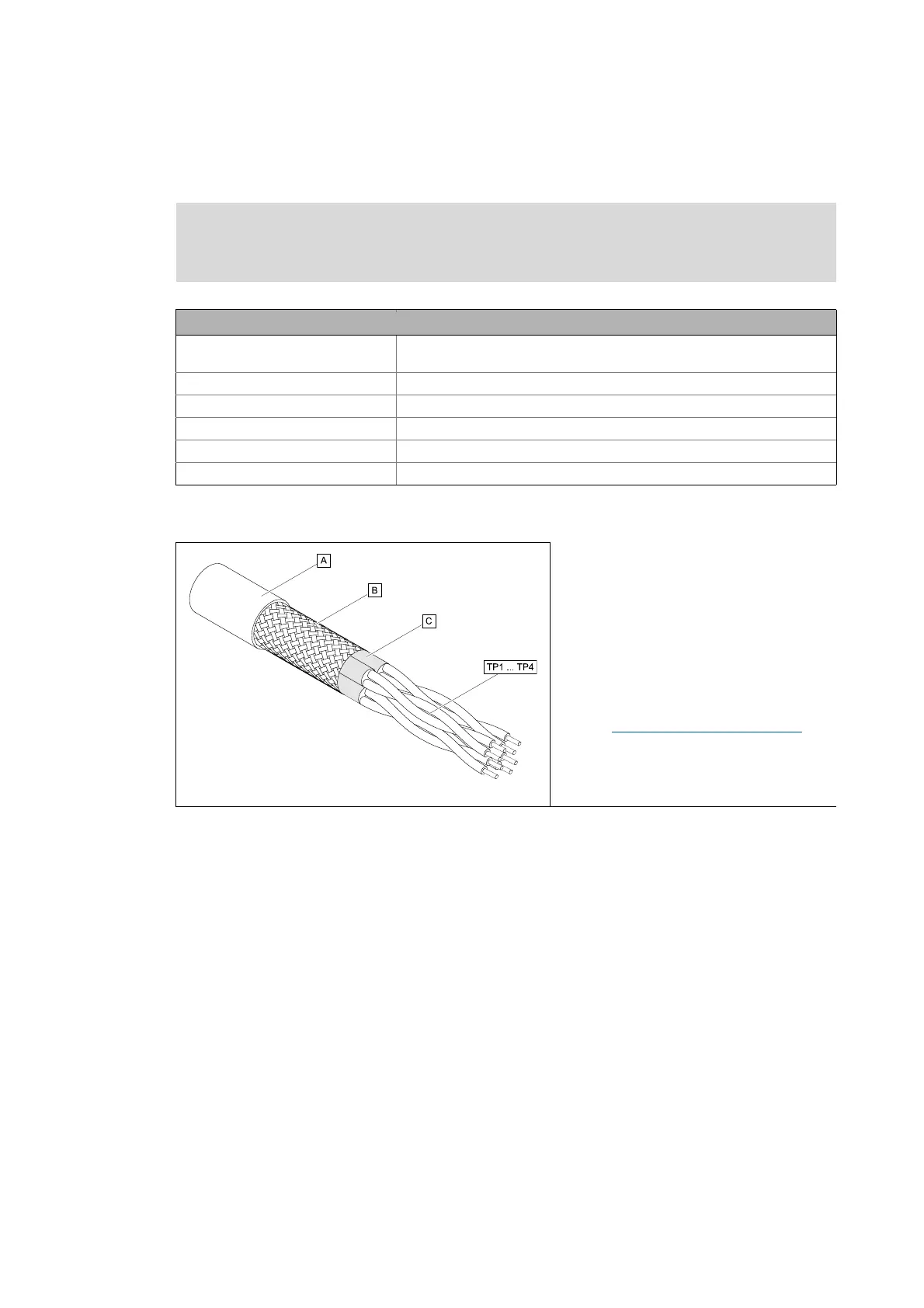

[5-9] Structure of the Ethernet cable (S/FTP, CAT 5e)
 Note!
Only use cables that meet the listed specifications.
Ethernet cable specification
Ethernet standard Standard Ethernet (in accordance with IEEE 802.3), 100Base-TX (Fast Ether-
net)
Cable type S/FTP (Screened Foiled Twisted Pair), ISO/IEC 11801 or EN 50173, CAT 5e
Damping 23.2 dB (for 100 MHz and 100 m each)
Crosstalk damping 24 dB (at 100 MHz and per 100 m)
Return loss 10 dB (per 100 m)
Surge impedance 100 Ω
E94YCEP016
A Cable insulation
B Braid
C Foil shielding
TP1
...
TP4
Twisted core pairs 1 ... 4
Colour code of the Ethernet cable
( 31)
