Setting the IP configuration
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
6.4.1 Settings via the PROFINET configurator of the »Engineer«
 How to set the IP parameters via the PROFINET configurator:

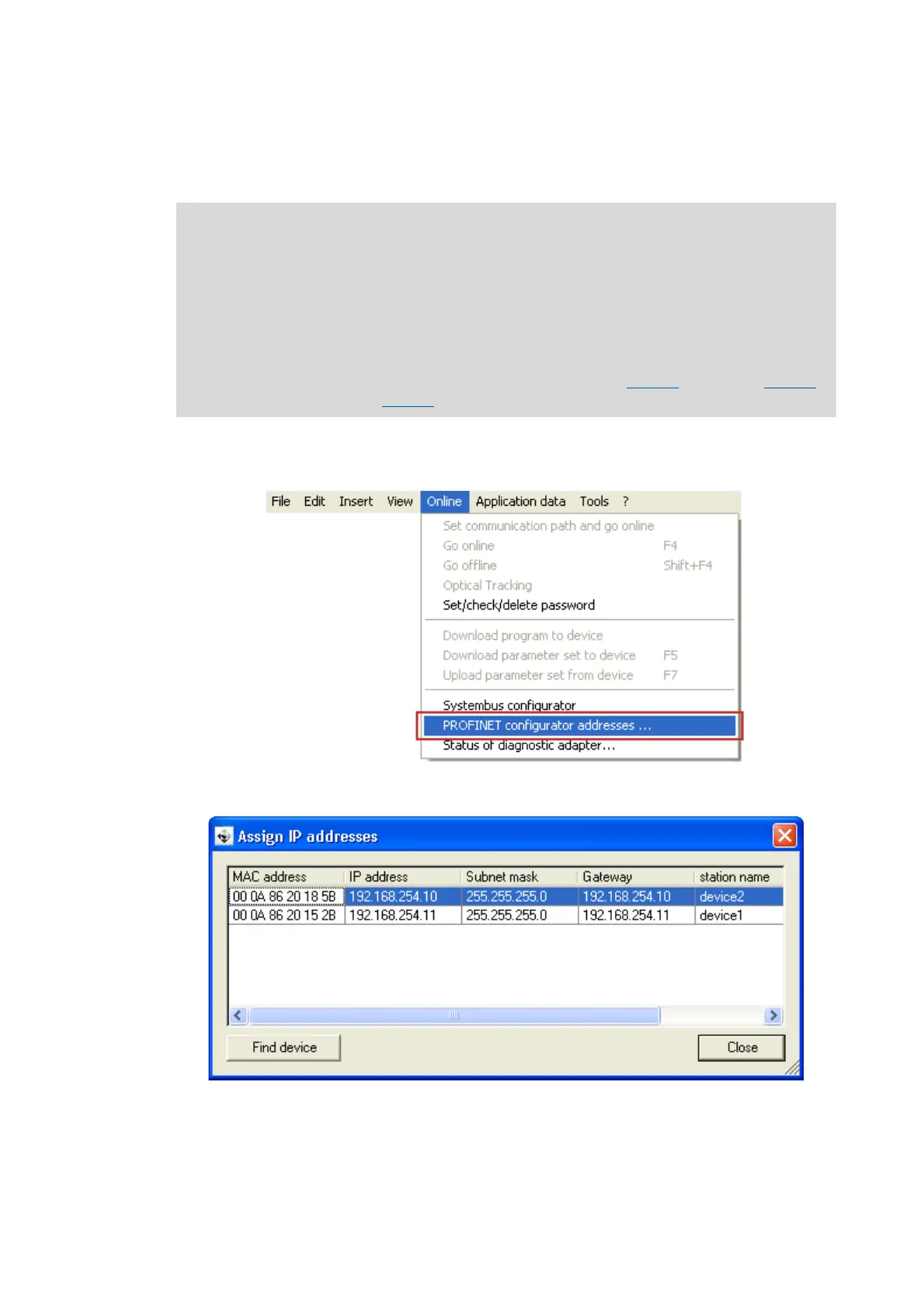

1. Execute the menu command Online  Profinet configurator addresses....
The Assign IP addresses dialog window is opened, and all Lenze PROFINET devices connec-
ted are listed.
 Note!
• The IP address must only be allocated manually in the »Engineer« if the PROFINET net-
work is not actuated on the IO controller yet (IP address was not allocated by the IO
controller yet).
• During the IP parameters are set in the »Engineer«, PROFINET communication with
the IO controller must not take place at the same time.
• Changes will be effective immediately and are saved with mains failure protection.
• The parameter values currently used are shown in codes C13010
(IP address), C13011
(subnet mask), and C13012
(gateway address).
