Commissioning
Setting the IP configuration
40
Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

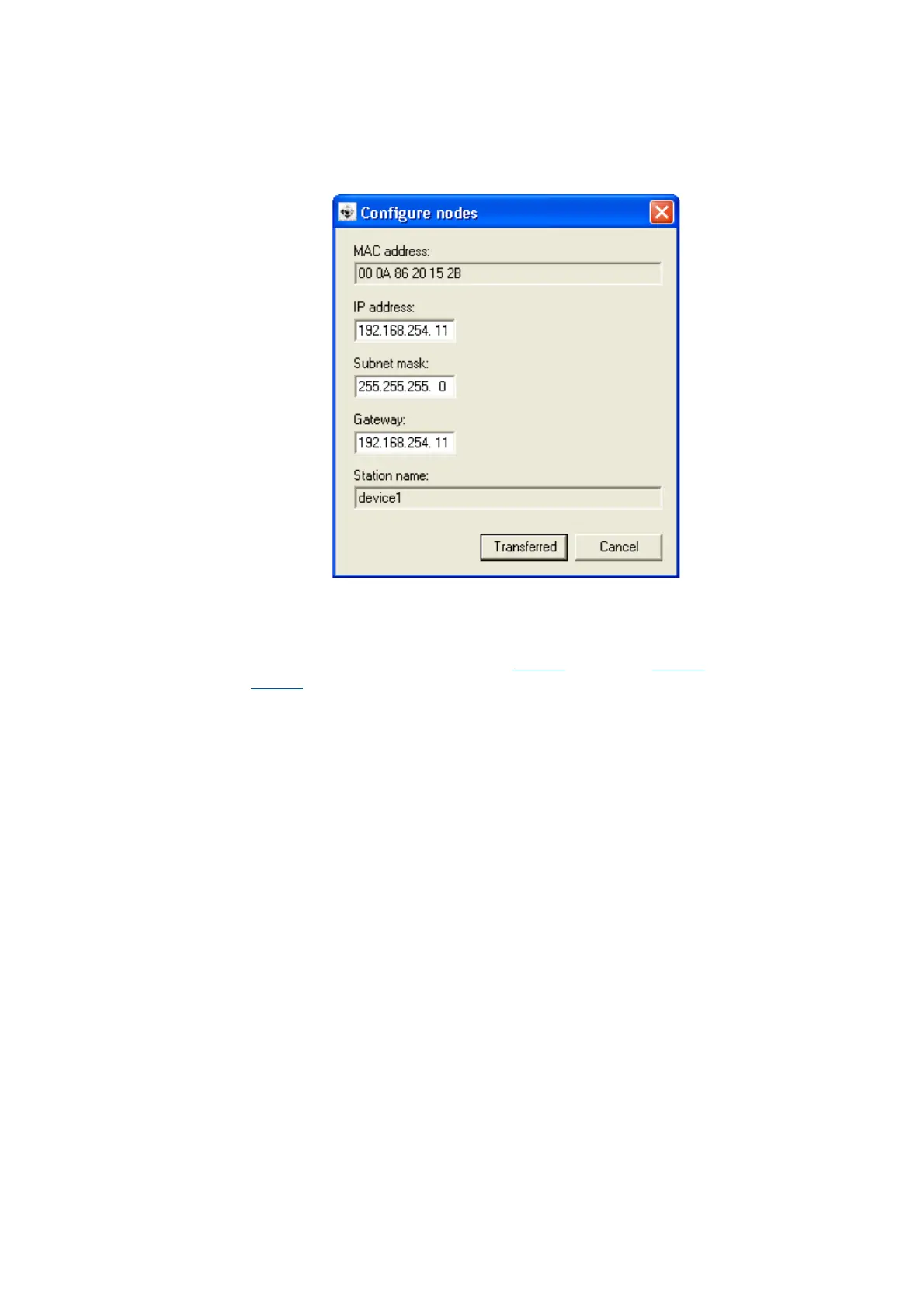

2. By double-clicking on the individual IP parameters, you can set the IP configuration for each
PROFINET node in the Configure nodes dialog window.
3. Click Transferred.
• The IP configuration is transferred to the corresponding PROFINET node.
• Changes in the IP parameters will become effective immediately.
•The IP parameters are written to codes C13000
(IP address), C13001 (subnet mask) and
C13002
(gateway address) of the communication module.
 Tip!
By clicking the Find device button in the Assign IP addresses dialog window (see step 1), you
can check whether the configuration was transferred successfully.
With device command C00002 = "11: Save all parameter sets", the current IP configuration
is saved non-volatilely in the memory module.
