Process data transfer
Freely configuring the port interconnection of the process data objects (PDO)
50
Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
8.3 Freely configuring the port interconnection of the process data objects (PDO)

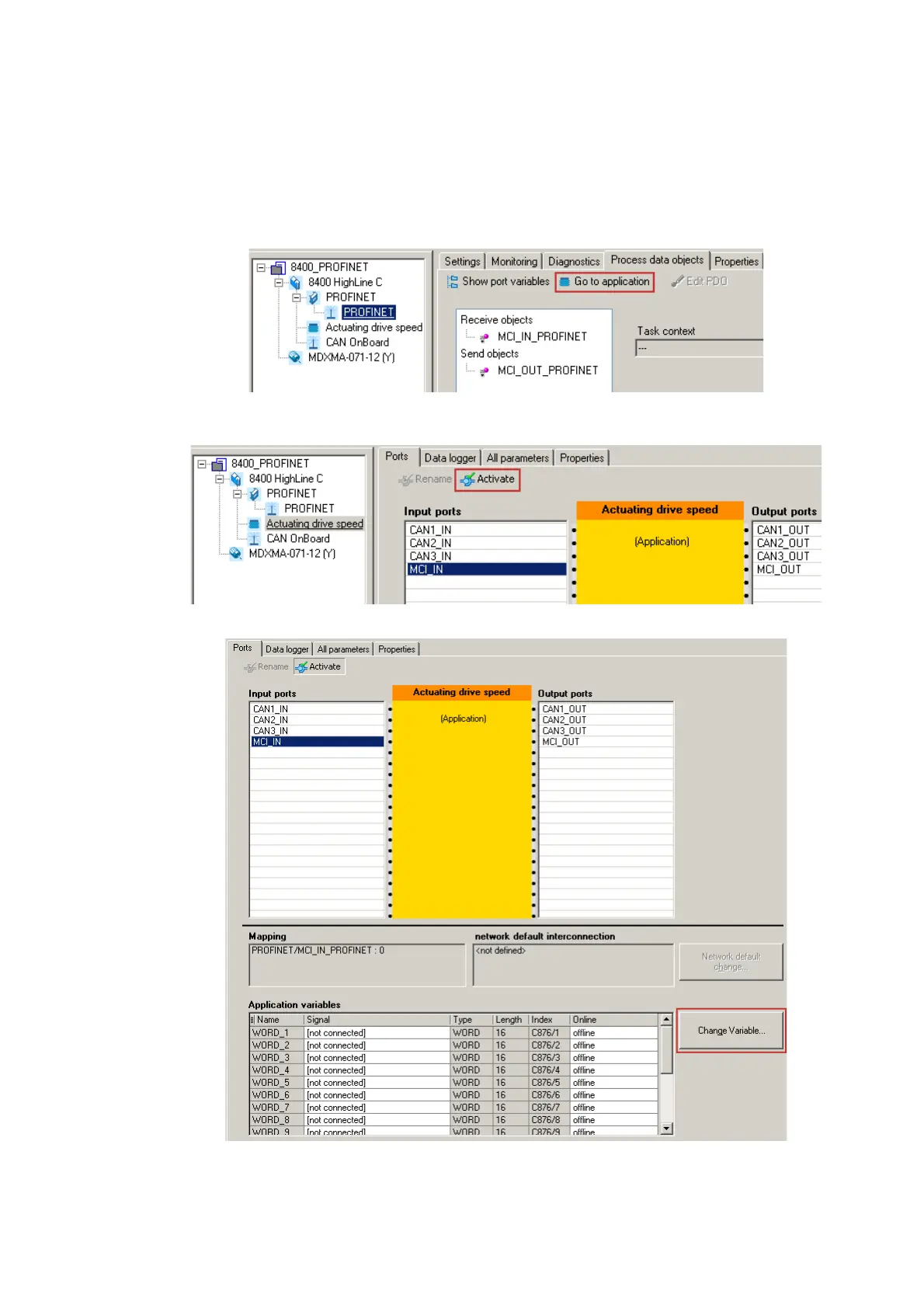

 How to freely configure the port interconnection in the »Engineer«:
1. Go to the Process data objects tab and click Go to application.
2. Go to the Ports tab, select the port blocks "MCI_IN" or "MCI_OUT" and click Activate to ac-
tivate them.
3. Click the Change Variable ... button.
