Lenze · E84AYCER communication module (PROFINET) · EDS84AYCER EN 3.0 - 02/2019 53
Process data transfer
Freely configuring the port interconnection of the process data objects (PDO)
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
 Tip!

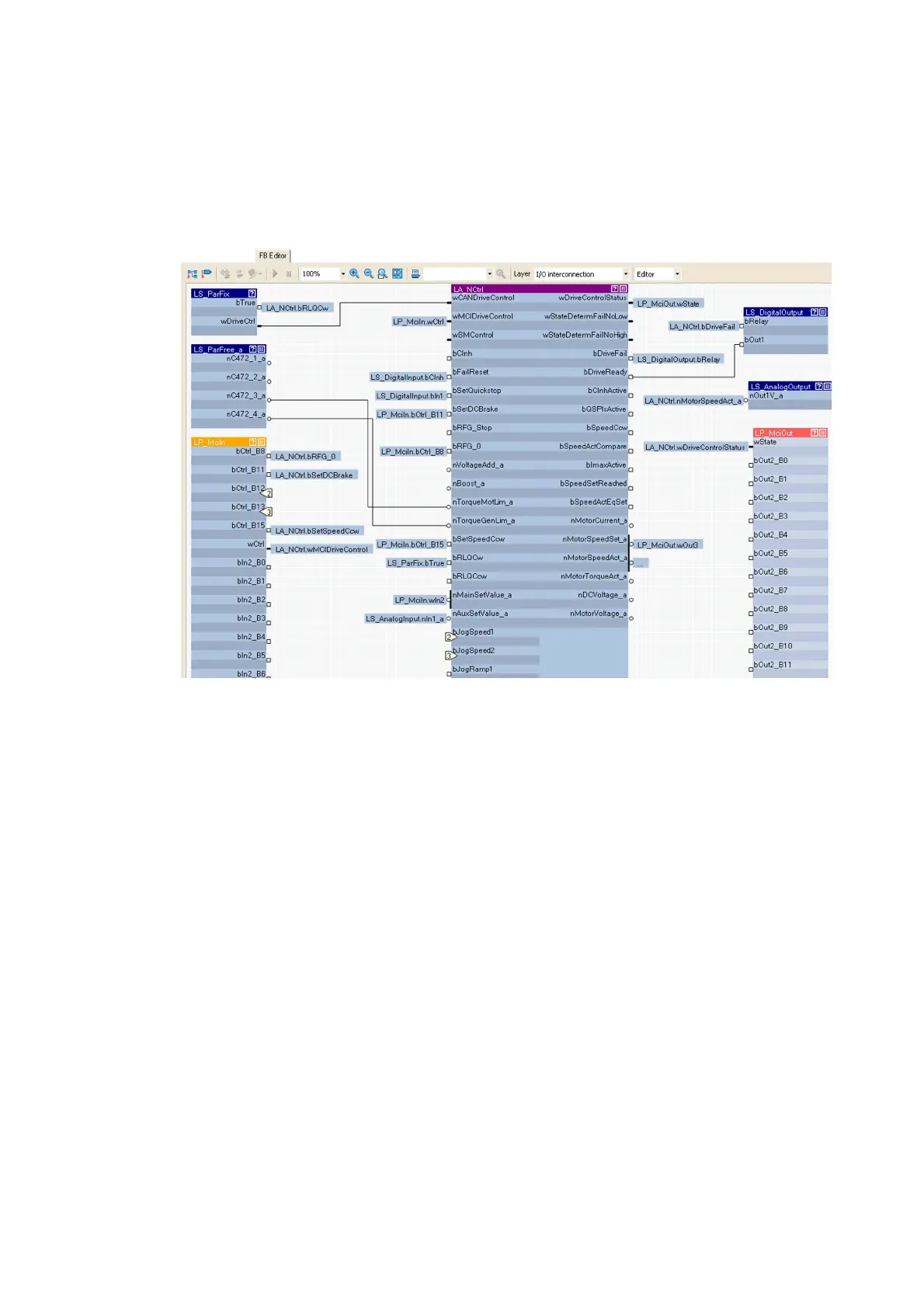

When the port blocks "LP_MciIn" and "LP_MciOut" are activated (see 1.), they will be visible
in the FB Editor. Here you can also assign signals to the process data words.
