5 Commissioning
General parameter setup (Favorites)
32 Lenze · Inverter i510 / i550 - Cabinet · Operation Manual · 0.4 EN · 02/2016
P400:4
I/O Setup
Reset fault
12: Digital input 2
–
P400:5
I/O Setup
DC brake
0: Not connected
–
P400:6
I/O Setup
Start forward (CW)
0: Not connected
–
P400:7
I/O Setup
Start reverse (CCW)
0: Not connected
–
P400:8
I/O Setup
Run forward (CW)
0: Not connected
–
P400:9
I/O Setup
Run reverse (CCW)
0: Not connected
–
P400:13
I/O Setup
Invert rotation
13: Digital input 3
–
P no.
Type
Name
Default setting
Unit
P400:18
I/O Setup
Preset selection bit0
14: Digital input 4
–
P400:19
I/O Setup
Preset selection bit1
15: Digital input 5
–
P400:20
I/O Setup
Preset selection bit2
0: Not connected
–
Output selection
The digital output and relay
can be used as feedback
signal for your control sys-
tem.
P no.
Type
Name
Default setting
Unit
P420:1
I/O Setup
Relay function
51: Ready to run
–
P420:2
I/O Setup
DO1 function
115: Holding brake
–
Analog input 1 for speed setpoint
** Availability of scaling depending on type of control unit.

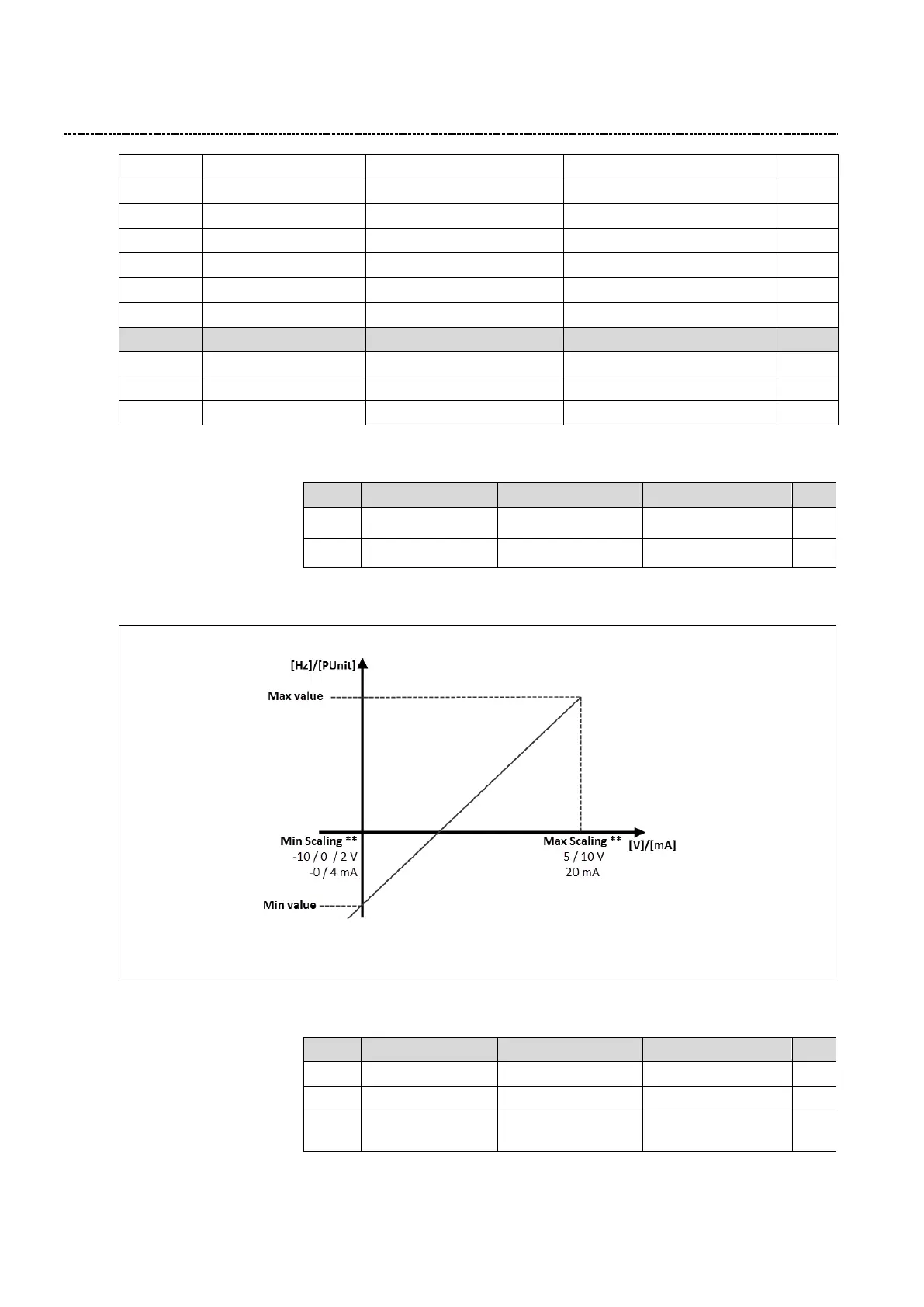

Fig. 14: Speed setpoint
If you have defined the AI1
as your speed setpoint de-
fine the correct input scal-
ing.
P no.
Type
Name
Default setting
Unit
P430:1
I/O Setup
AI1 configuration
0: 0...10VDC
–
P430:2
I/O Setup
AI1 frequency @ min
0.0
Hz
P430:3
I/O Setup
AI1 frequency @ max
50.0/60.0 *Typecode
dependent
Hz
