F IBER O PTIC SFP D EVICES
4-5
3. Connect one end of the cable to the LC port on the switch and the
other end to the LC port on the other device. Since LC connectors are
keyed, the cable can be attached in only one orientation.

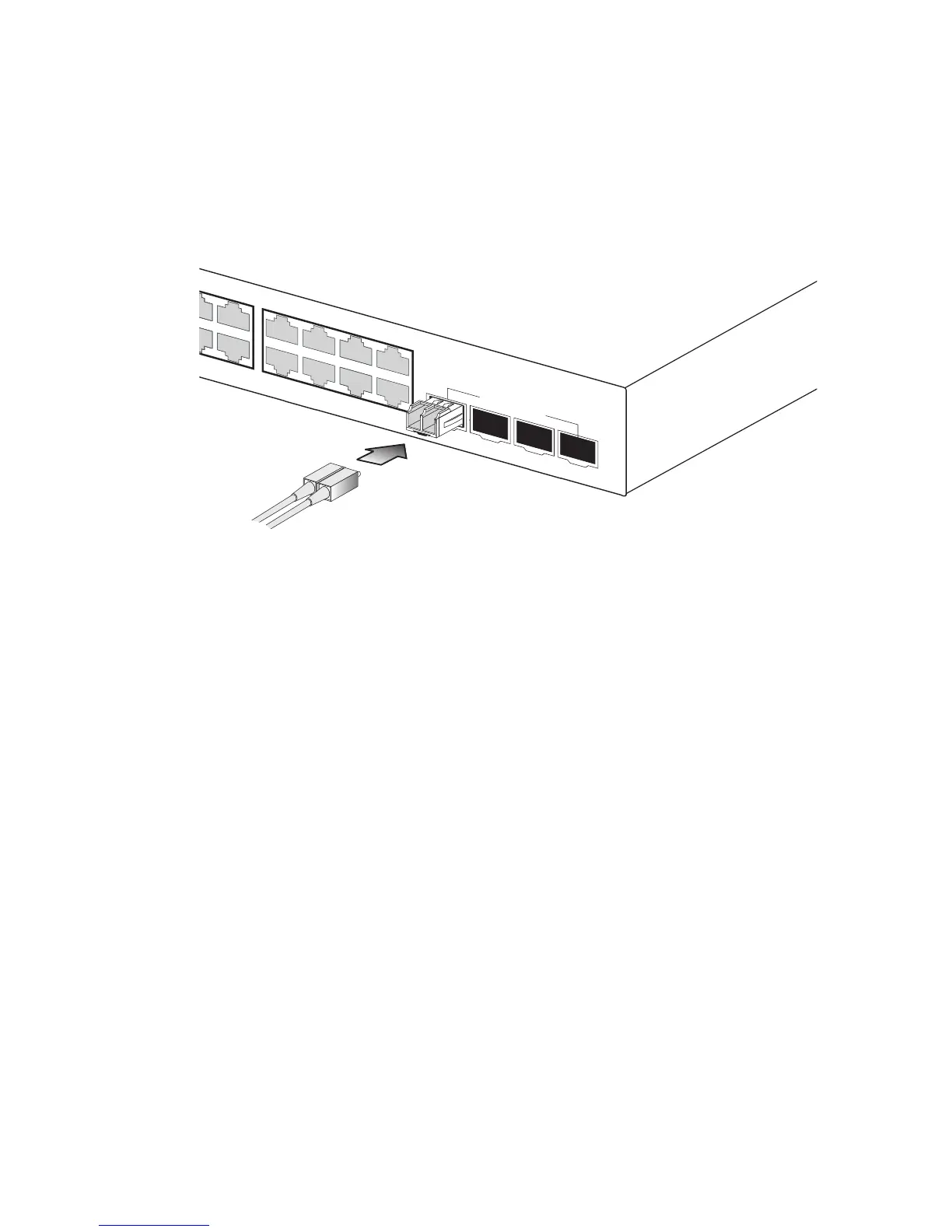

Figure 4-3 Making Connections to SFP Transceivers
4. As a connection is made, check the Link LED on the switch
corresponding to the port to be sure that the connection is valid.
The 1000BASE-SX, 1000BASE-LX and 1000BASE-ZX fiber optic ports
operate at 1 Gbps full duplex. The maximum length for fiber optic cable
operating at Gigabit speed will depend on the fiber type as listed under
“1000 Mbps Gigabit Ethernet Collision Domain” on page 4-6.
8
9
20
9 10
11 12
21 22 23 24
2
1
2
2
2
3
2
4
Shared
SFP
Port
