C
ONFIGURING
VLAN G
ROUPS
6-41
Web – After creating a new VLAN, the following screen displays. Assign
the ports and trunks associated with the VLAN, and click Apply.

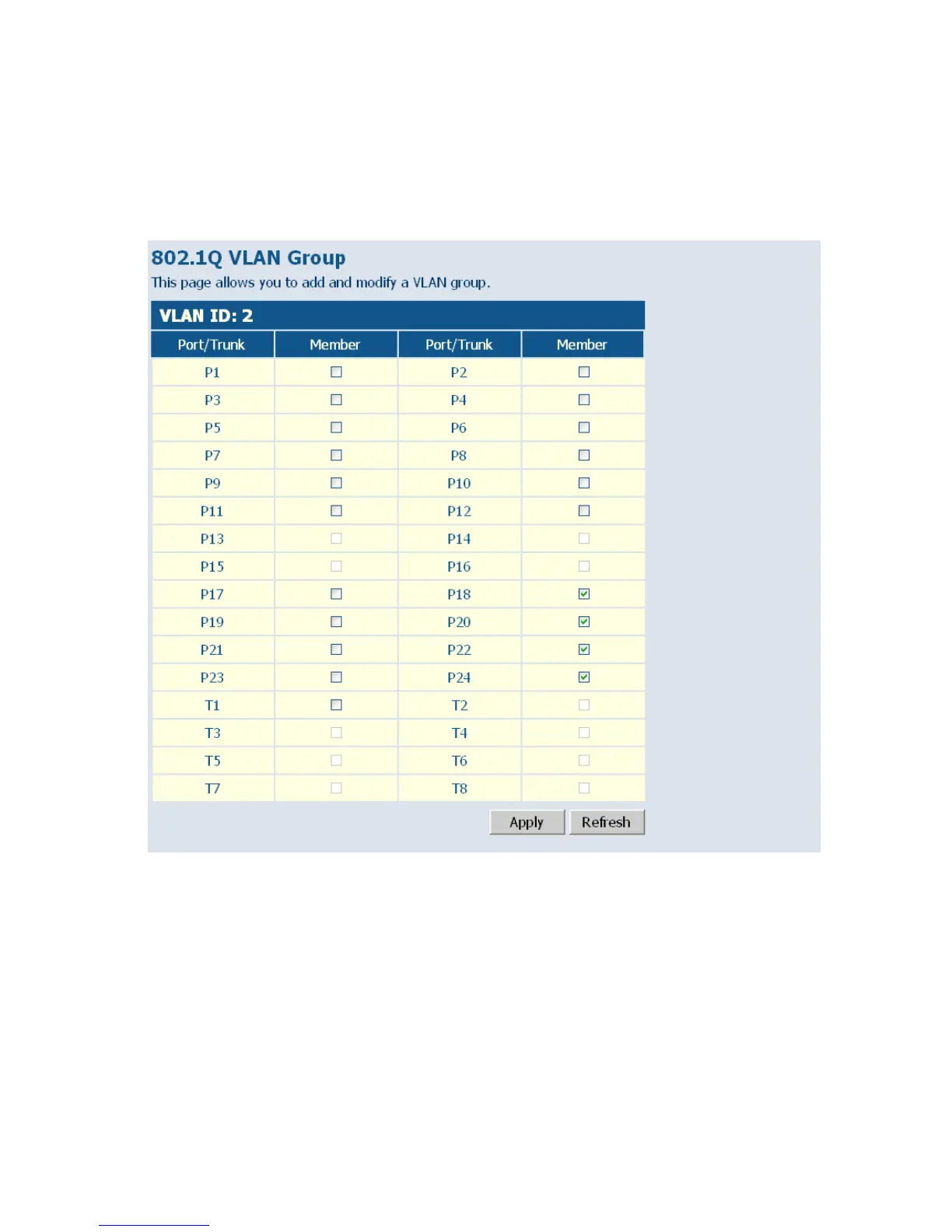

Figure 6-25 VLAN Group Settings
