Cable Diagnostics
You can perform cable diagnostics for all ports or selected ports to
diagnose any cable faults (short, open, etc.) and feedback a distance to the
fault.
Field Attributes
• Cable Diagnostics – Cable diagnostics is performed on a per-port
basis. Select the port number from the drop-down list.
• Cable Status – Shows the cable length, operating conditions and isolates
a variety of common faults that can occur on Category 5 twisted pair
cabling.
Web – Click PORTS, Cable Diagnostics.

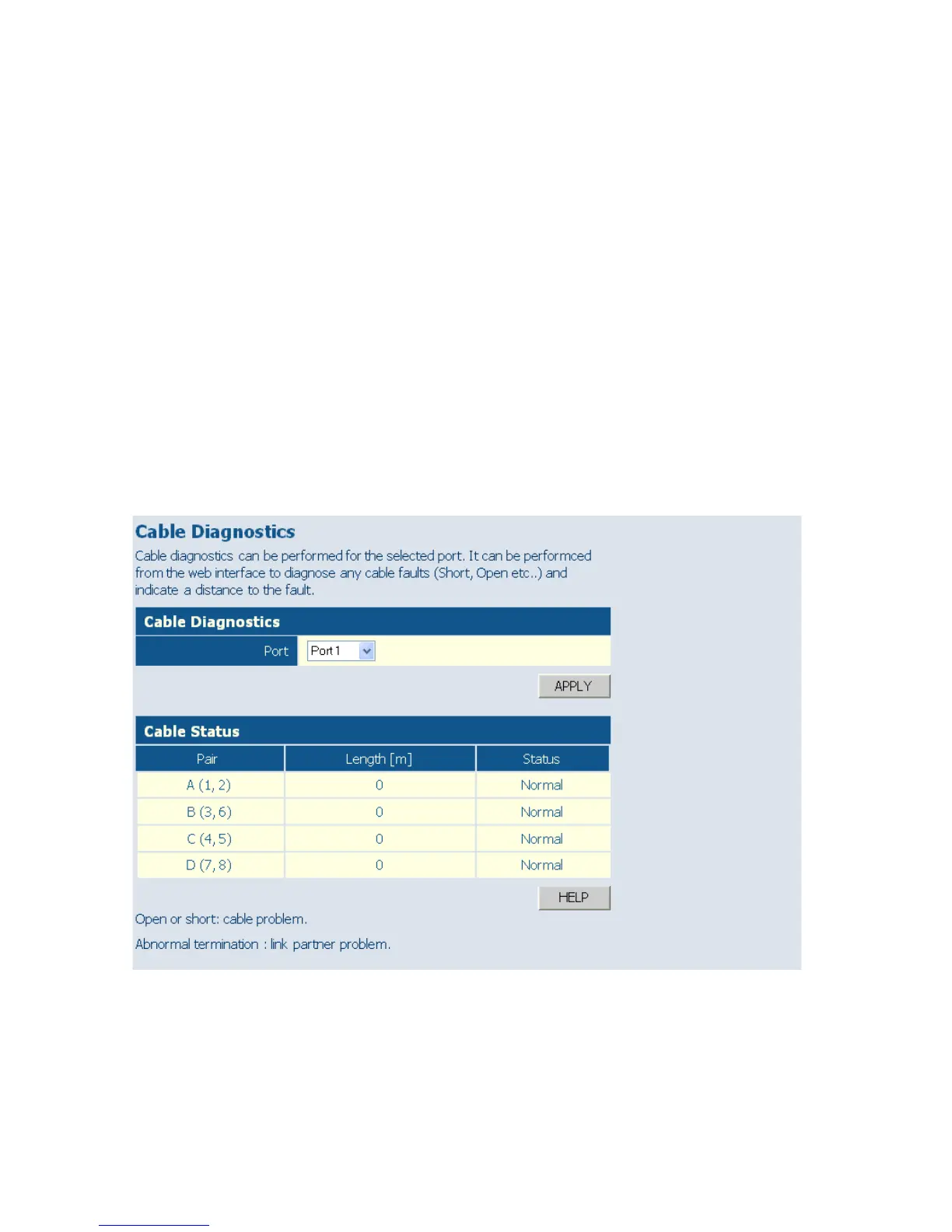

Figure 6-18 Cable Diagnostics
