C
ONFIGURING
THE
S
WITCH
6-48

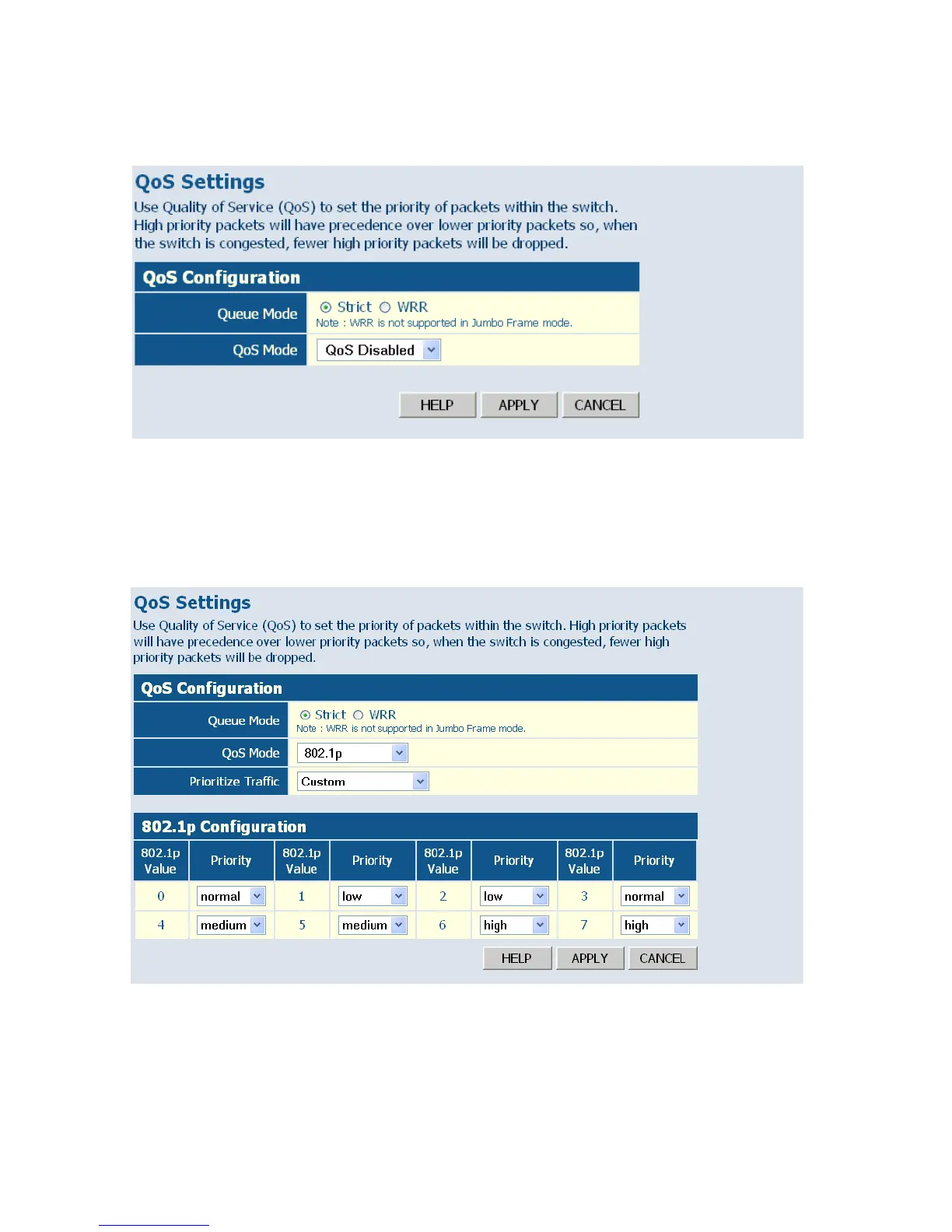

Figure 6-27 QoS Settings
When the QoS Mode is set to 802.1p, the 802.p Configuration table is
displayed as shown below.
Figure 6-28 802.1p Configuration
