LevelOne GSW-1676 - Figure 6-23 LACP Status Overview

P ORT C ONFIGURATION
6-37
Aggregation Information
• Aggregation Group – Identifier for a local link aggregation group.
• Partner MAC Address – Physical address of device at other end of link.
• Local Ports Aggregated – Local ports participating in this LAG.
• Seconds Since Last Change – Time since the last LACP packet was
received.
LACP Port Status
• Port – A front panel port number.
• Protocol Active – Indicates whether or not LACP is active on this port.
• Partner Port Number – A list of the ports attached at the remote end
of this LAG link member.
• Operational Port Key – Current operational value of the key used by
this LAG.
Web – Click TRUNKS, LACP Status.

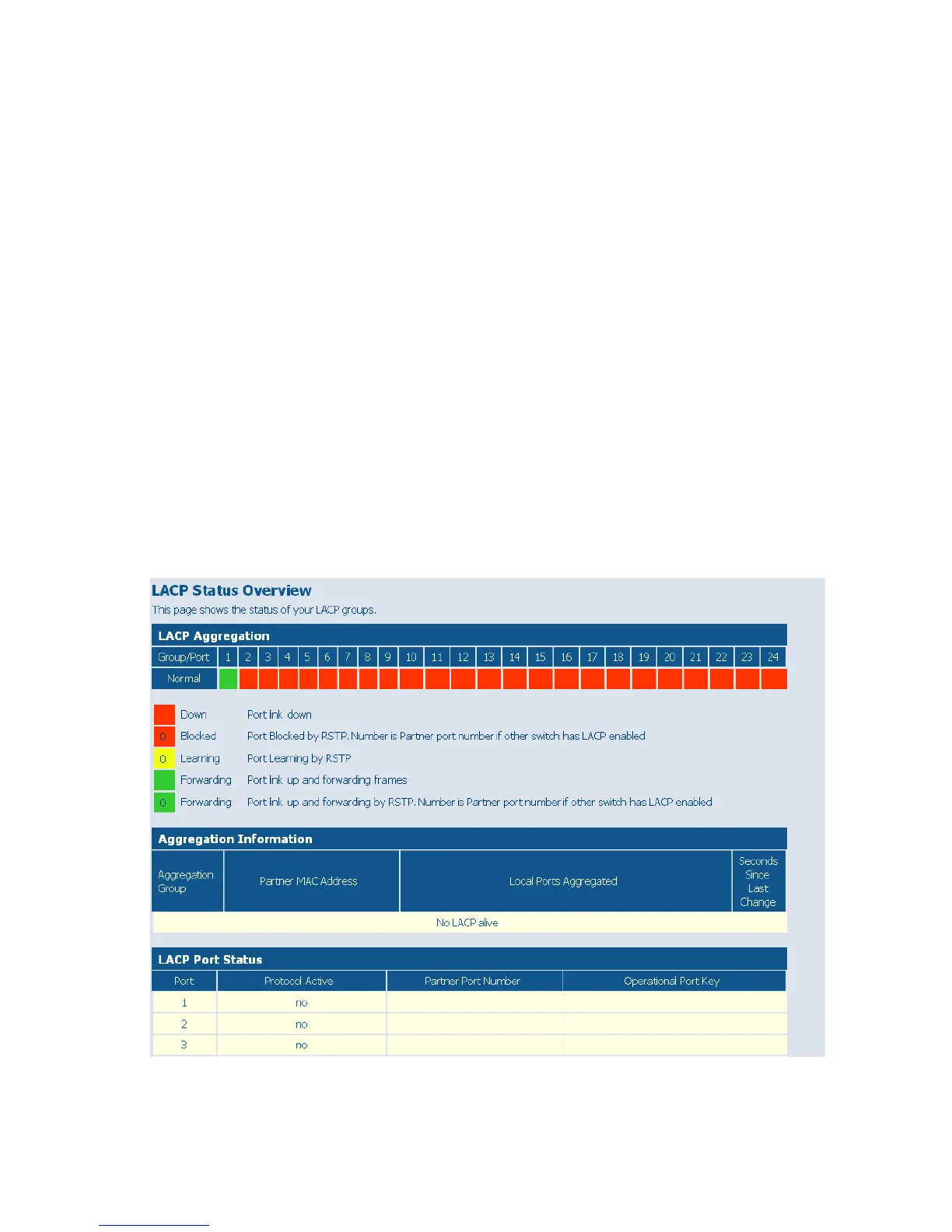

Figure 6-23 LACP Status Overview
