b Gently pull the cover and system board away from the printer, and then remove it.

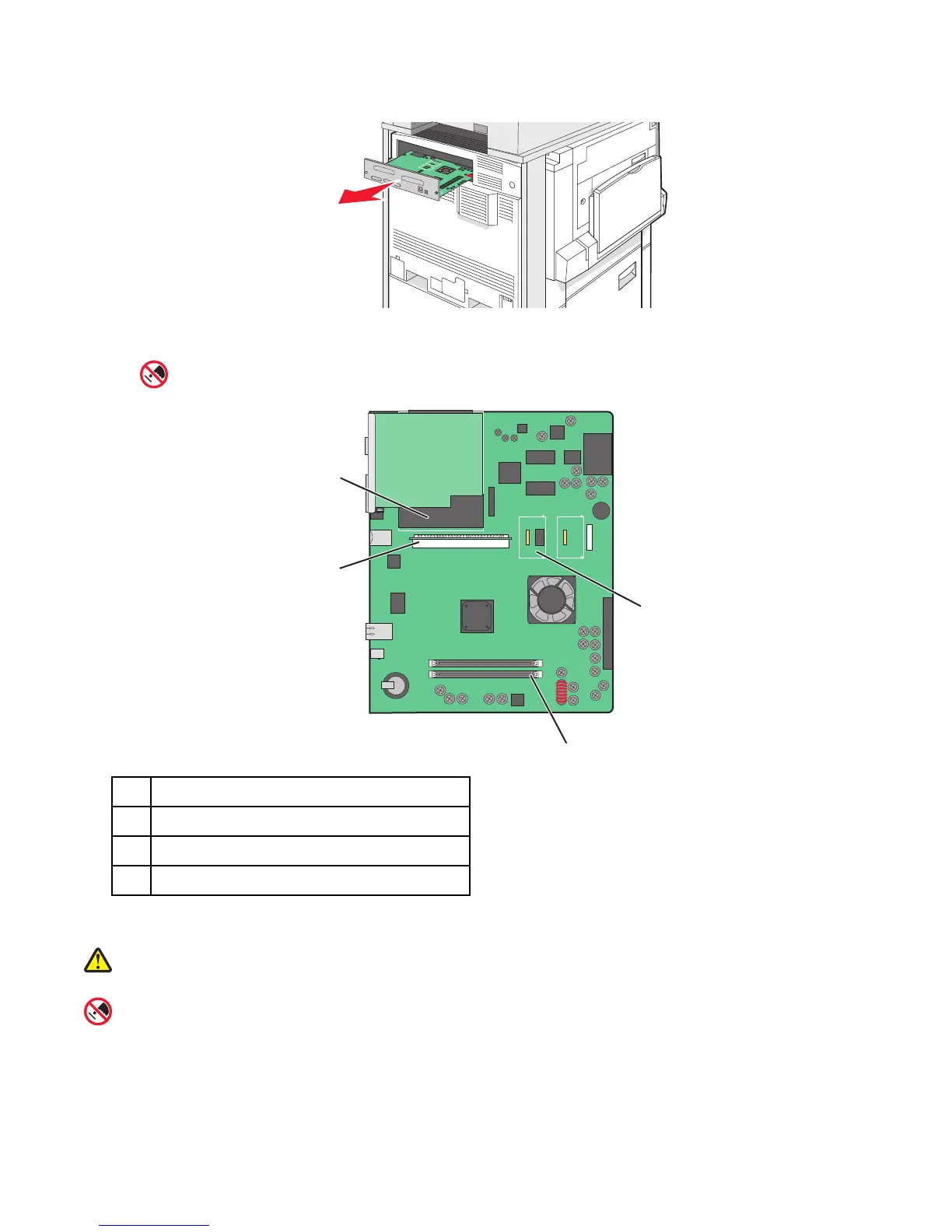

2 Use the illustration below to locate the appropriate connector.
Warning: System board electrical components are easily damaged by static electricity. Touch
something metal on the printer before touching any system board electronic components or connectors.
1
2
3
4
1
Firmware and flash memory card connectors
2
Memory card connector
3
Internal print server connector
4
Hard disk
Installing a memory card
CAUTION: If you are installing a memory card after setting up the printer, turn the printer off, and unplug the
power cord from the wall outlet before continuing.
Warning: System board electrical components are easily damaged by static electricity. Touch something metal
on the printer before touching any system board electronic components or connectors.
