An internal print server allows connection from the printer to the local area network (LAN). An optional port interface
card expands the ways the printer can connect to a computer or external print server.

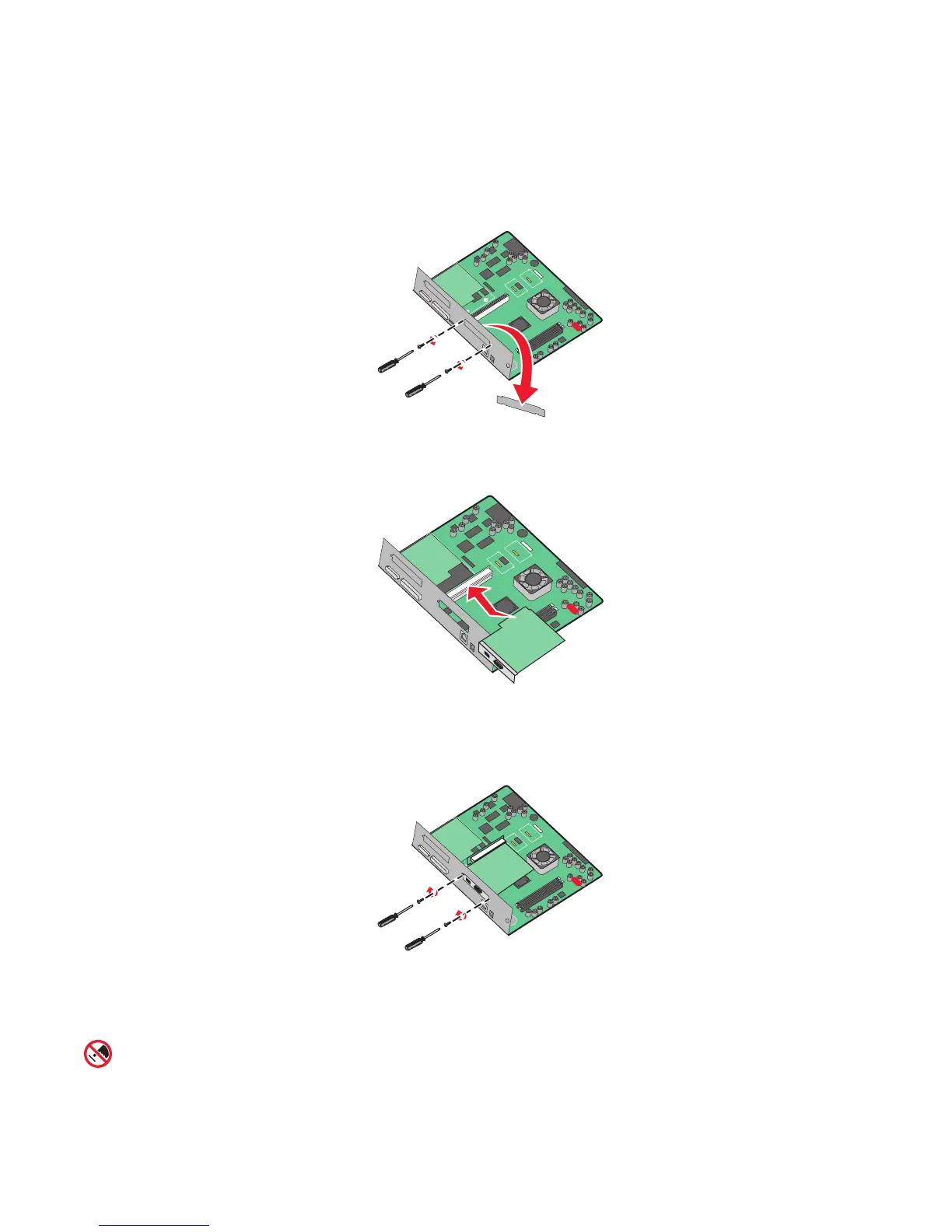

1 Access the system board.
2 Unpack the internal print server or port interface card.
3 Remove the metal plate on the system board tray that covers the connector slot, and save the metal plate.
4 Align the connector on the internal print server or port interface card with the connector on the system board.
Note: The cable connectors on the side of the optional card must fit through the opening in the faceplate.
5 Push the internal print server or port interface card firmly into the card connector on the system board.
6 Insert a screw into the hole on the right side of the connector slot. Gently tighten the screw to secure the card
to the system board tray.
7 Reinstall the system board.
Reinstalling the system board
Warning: System board electrical components are easily damaged by static electricity. Touch something metal
on the printer before touching any system board electronic components or connectors.
