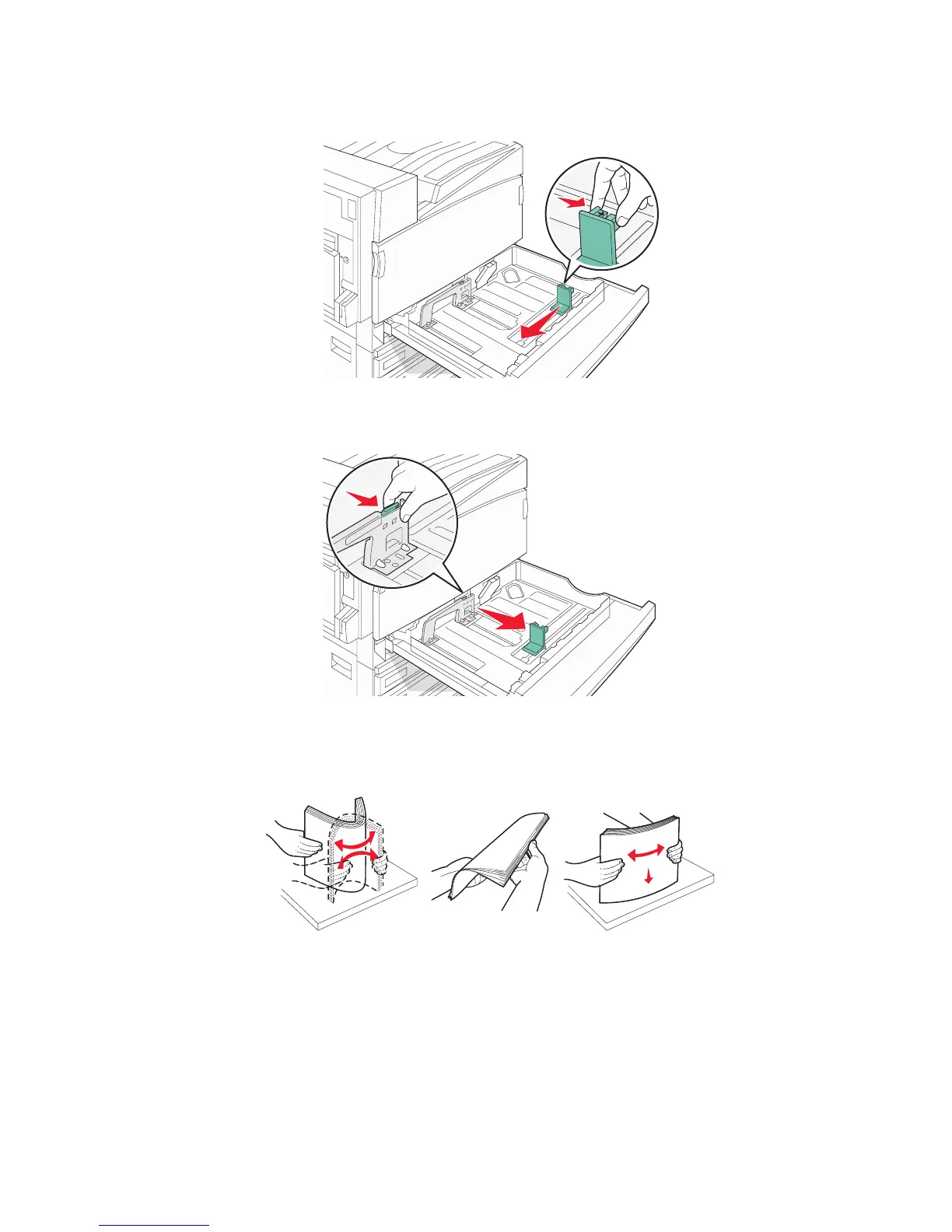

2 Squeeze the width guide tabs together as shown, and move the width guide to the correct position for the paper
size being loaded.
3 Squeeze the length guide tab inward as shown, and slide the guide to the correct position for the paper size
being loaded.
Note: Use the size indicators on the bottom of the tray to help position the guides.
4 Flex the sheets back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten
the edges on a level surface.
5 Load the paper stack with the recommended print side faceup. Load the paper in either the long-edge or
short-edge orientation as shown below:
Notes:
• Load sizes larger than A4 in the short-edge orientation.
• Paper must be loaded in the short-edge orientation to create booklets if the optional booklet finisher is
installed.
35
