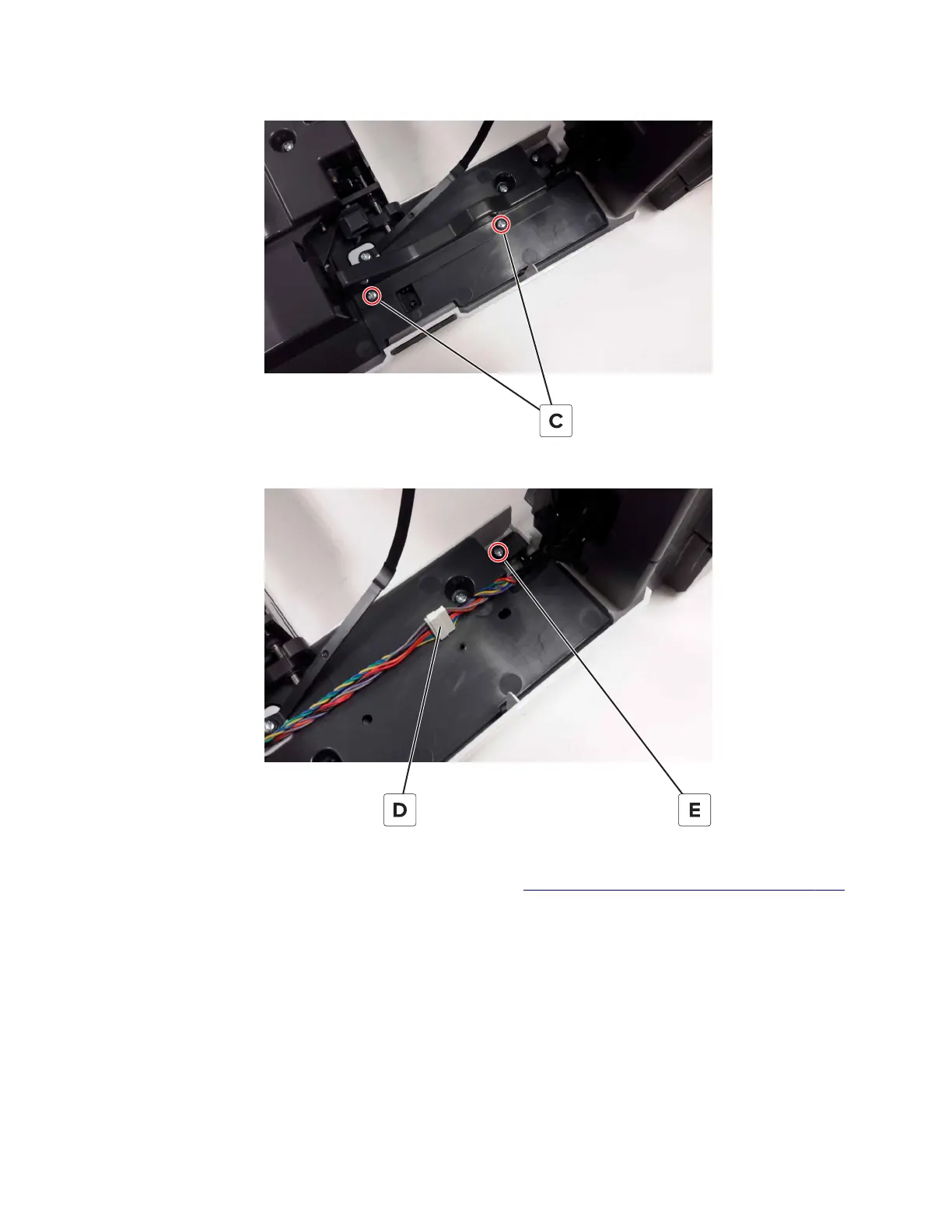

3 Remove the two screws (C).
4 Disconnect the cable (D), and then remove the screw (E).
5 Remove the straps from the duplex outer guide.
6 Remove the front cover from the duplex outer guide. See “Duplex outer guide removal” on page 289.
5028
Repair information
267
