5 Pull the bell crank (B) and spring (C) o the mounting pin.

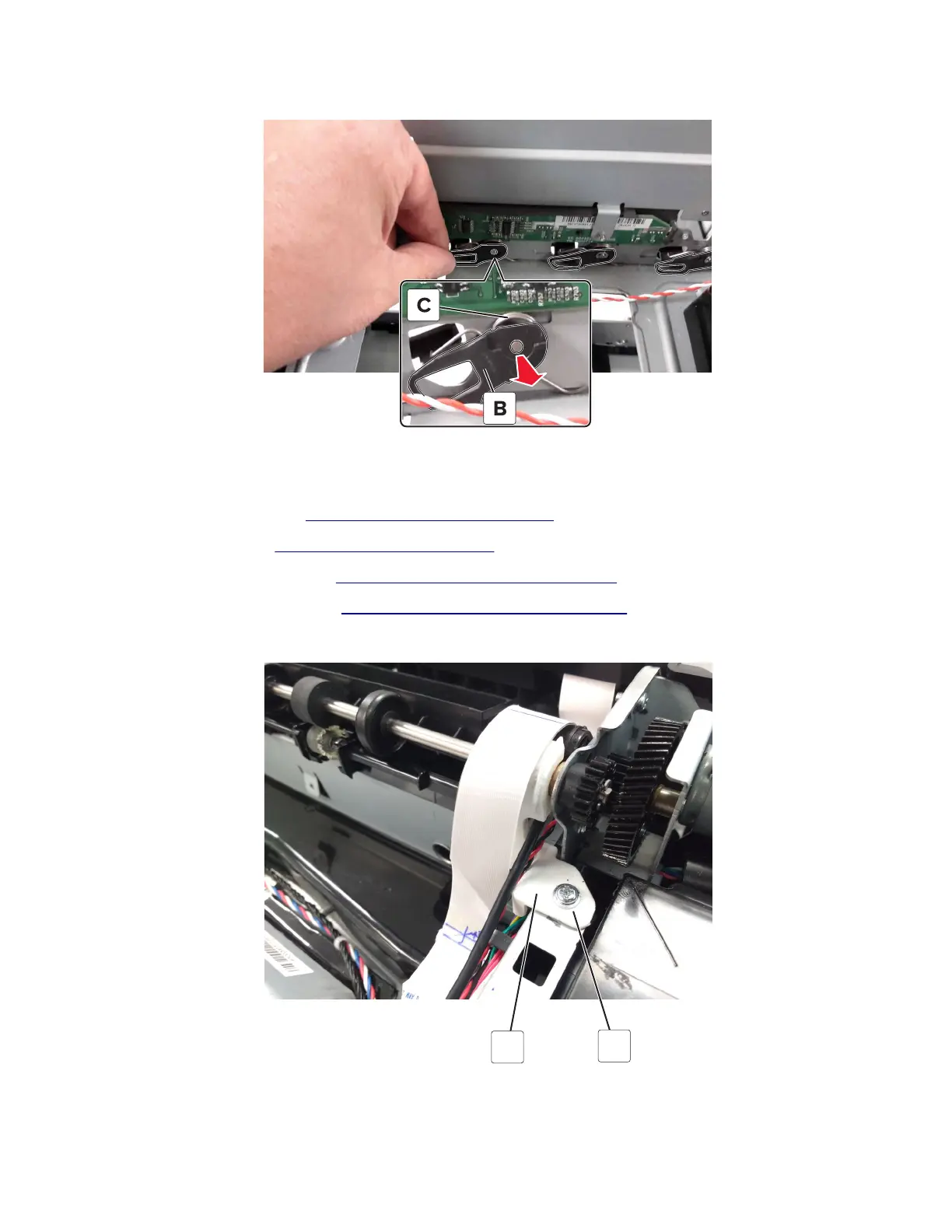

Output roll removal
1 Remove the left cover. See “Left cover removal” on page 271.
2 Remove the fuser. See “Fuser removal” on page 333.
3 Remove the redrive guide. See “Redrive guide removal” on page 354.
4 Remove the motor (output). See “Motor (output) removal” on page 297.
5 Remove the screw (A), and then remove the cable guide (B).
B
A
5028
Repair information
364
