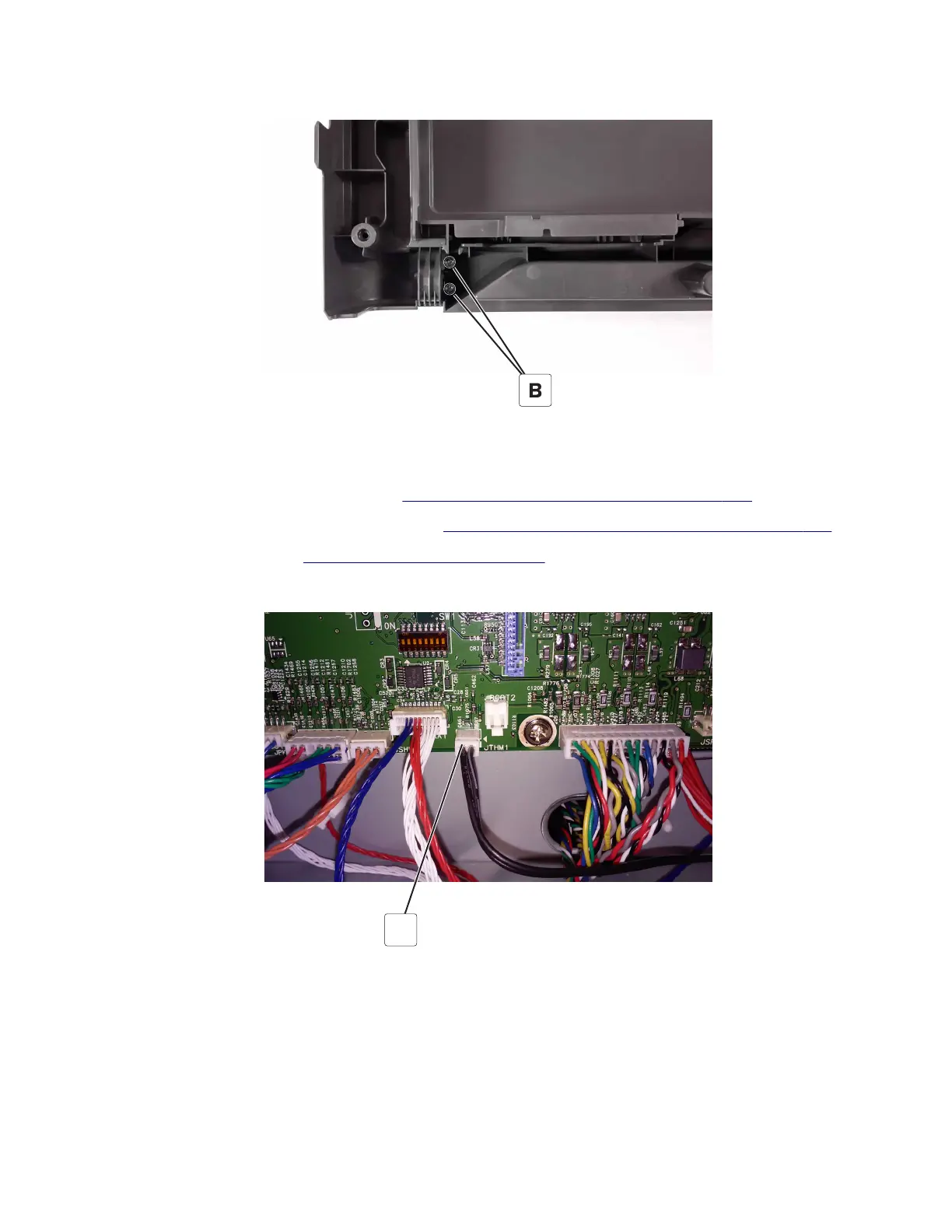

5 Remove the two waste toner bottle stops (B), and then remove the toner door from the right cover assembly.
Sensor (TPS) removal
1 Remove the controller board shield. See “Controller board shield removal” on page 356.
2 Remove the inner controller board shield. See “Inner controller board shield removal” on page 357.
3 Remove the TPS sled. See “TPS sled removal” on page 327.
4 Disconnect the thermistor cable (A) from the controller board.
A
5028
Repair information
325
