Waste toner bottle idler gear removal

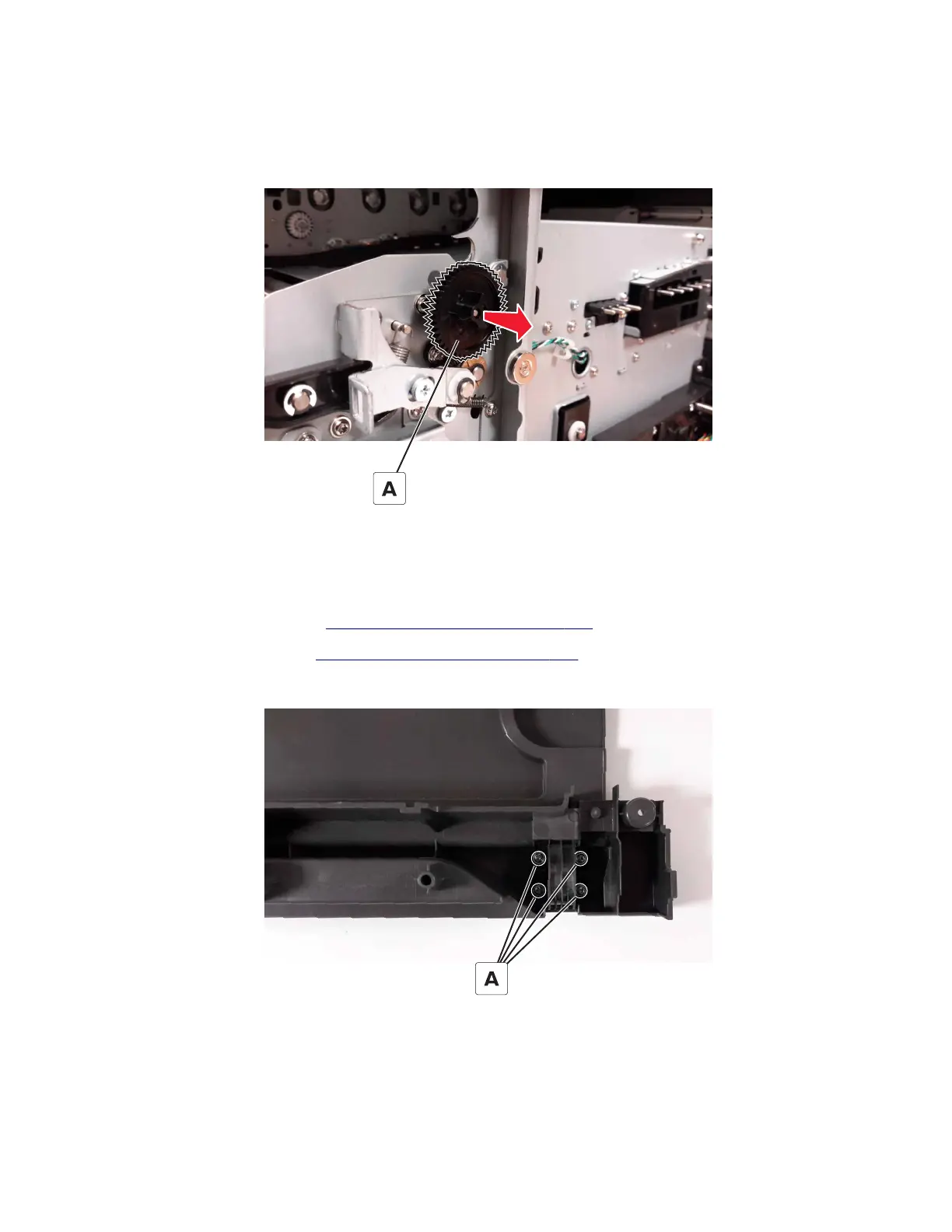

1 Remove the waste toner bottle.
2 Remove the gear.
Imaging unit cover removal
1 Remove the waste toner bottle.
2 Remove the motor cover. See “Motor cover removal” on page 273.
3 Remove the right cover. See “Right cover removal” on page 272.
4 Remove the four screws (A).
