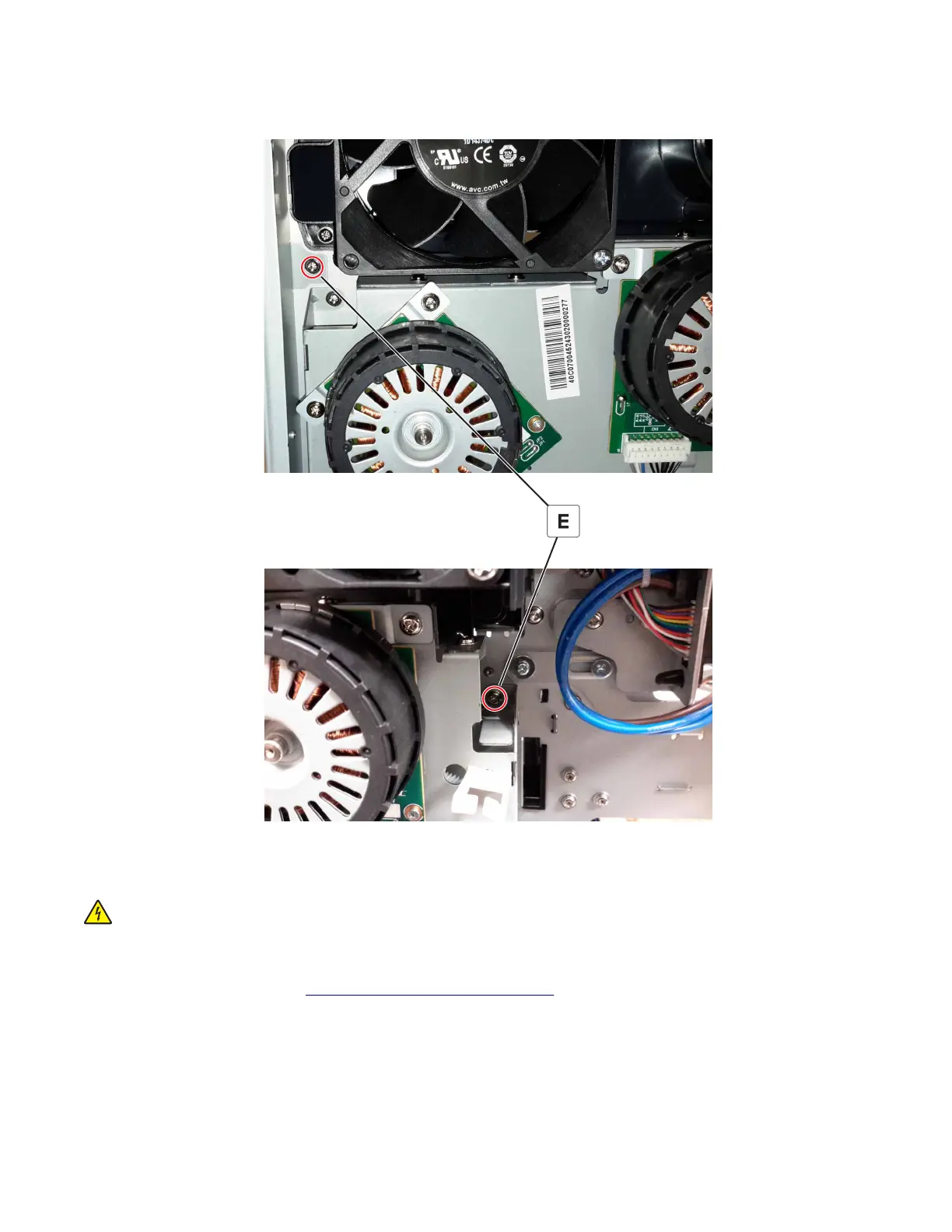

6 Remove the two screws (E) from the top-left and top-right corners of the EP drive, and then remove the gear
box.
LVPS removal
CAUTION—SHOCK HAZARD: The LVPS may have residual voltage present. To avoid the risk of
electrical shock, do not touch its circuit components. Only handle it by its outer edges.
1 Open the front door.
2 Remove the left cover. See “Left cover removal” on page 271.
5028
Repair information
305
