Lexmark CS720 - Right Cover Removal

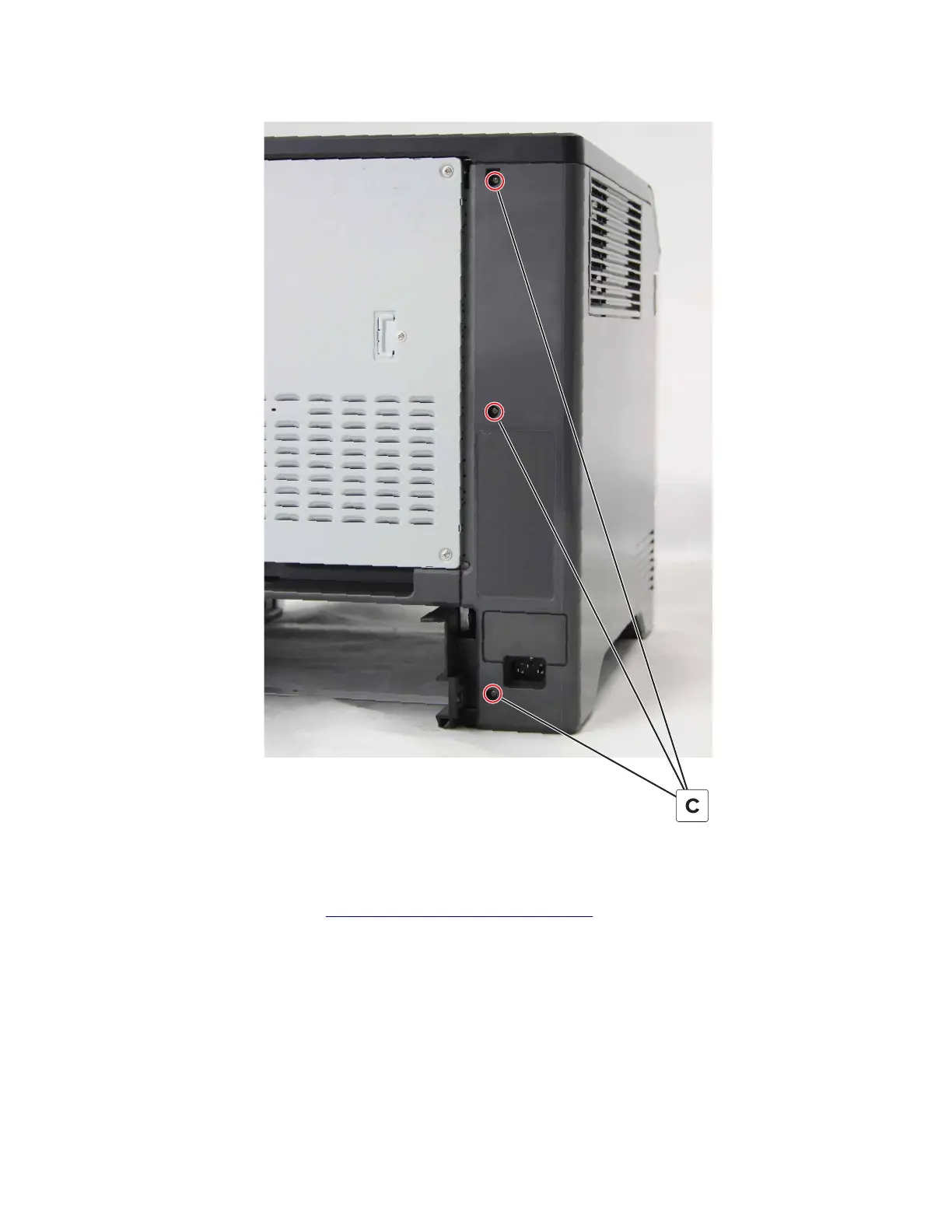

4 Remove the three screws (C) on the rear of the cover, and then remove the cover.
Right cover removal
1 Remove the motor cover. See “Motor cover removal” on page 273.
2 Remove the waste toner bottle.
5028
Repair information
272
