Lexmark CS720 - Toner Door Mount Removal

Toner door mount removal
1 Remove the toner door. See “Toner door removal” on page 276.

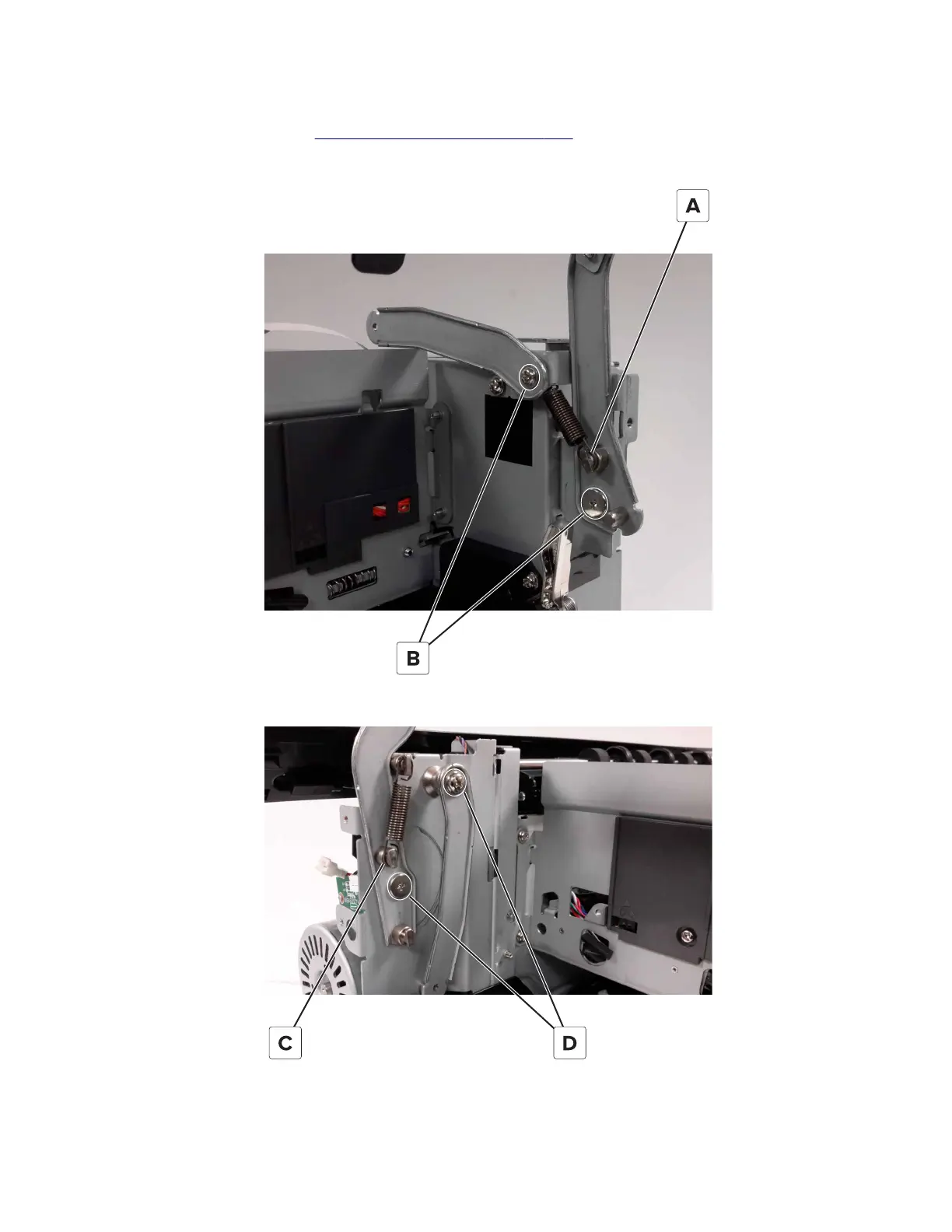

2 Unhook the spring (A), and then remove the two screws (B) on the rear side.
3 Unhook the spring (C), and then remove the two screws (D) on the front.
4 Remove the toner door mount from the printer.
5028
Repair information
279
