Sensor (550-sheet tray trailing edge) removal
1 Remove the tray insert.
2 Remove the pick roller.

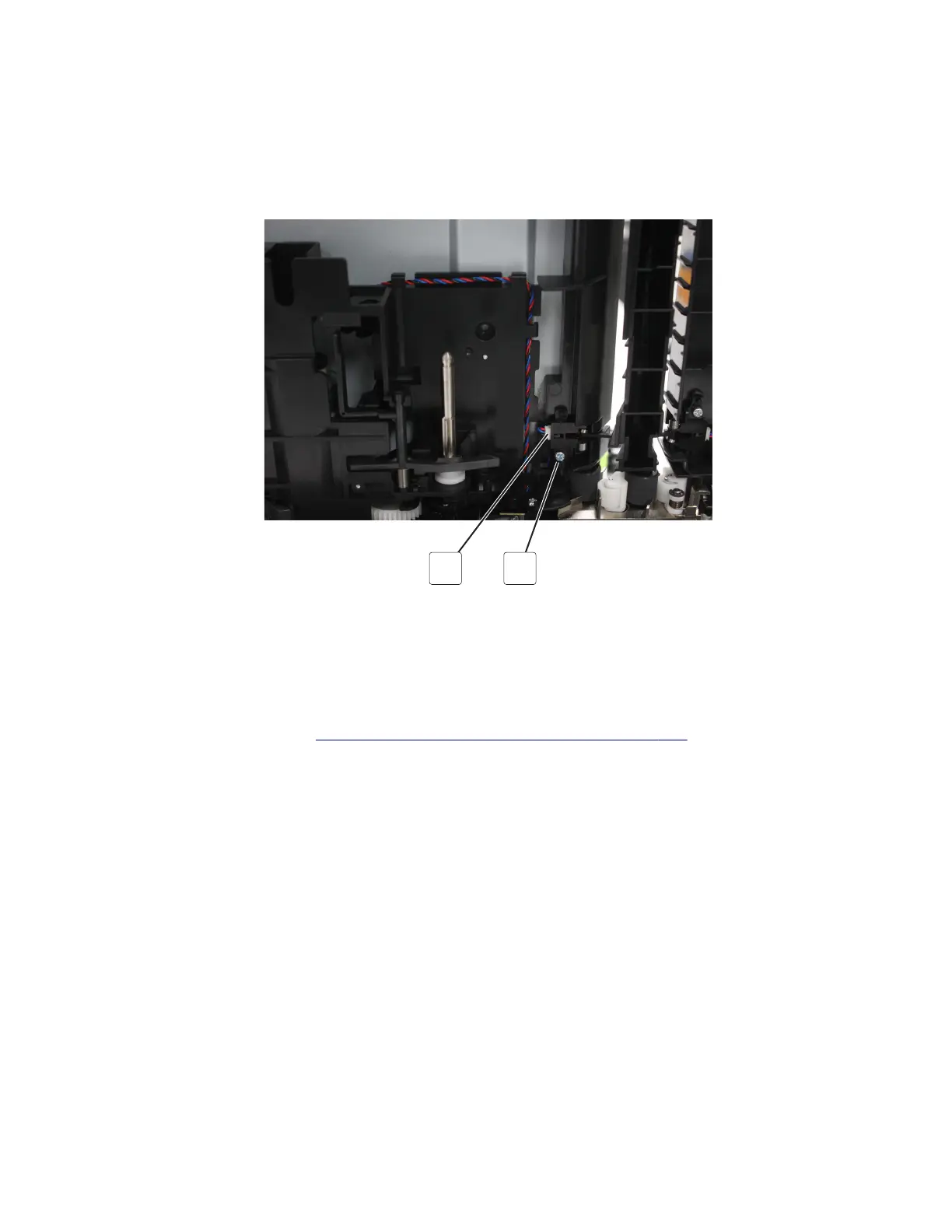

3 Remove the screw (A), and then disconnect the cable (B).
B A
4 Remove the sensor.
Sensor (550-sheet tray paper size) removal
1 Remove the tray insert.
2 Remove the right cover. See “550-sheet tray right cover removal” on page 375.
5028
