TMC card removal

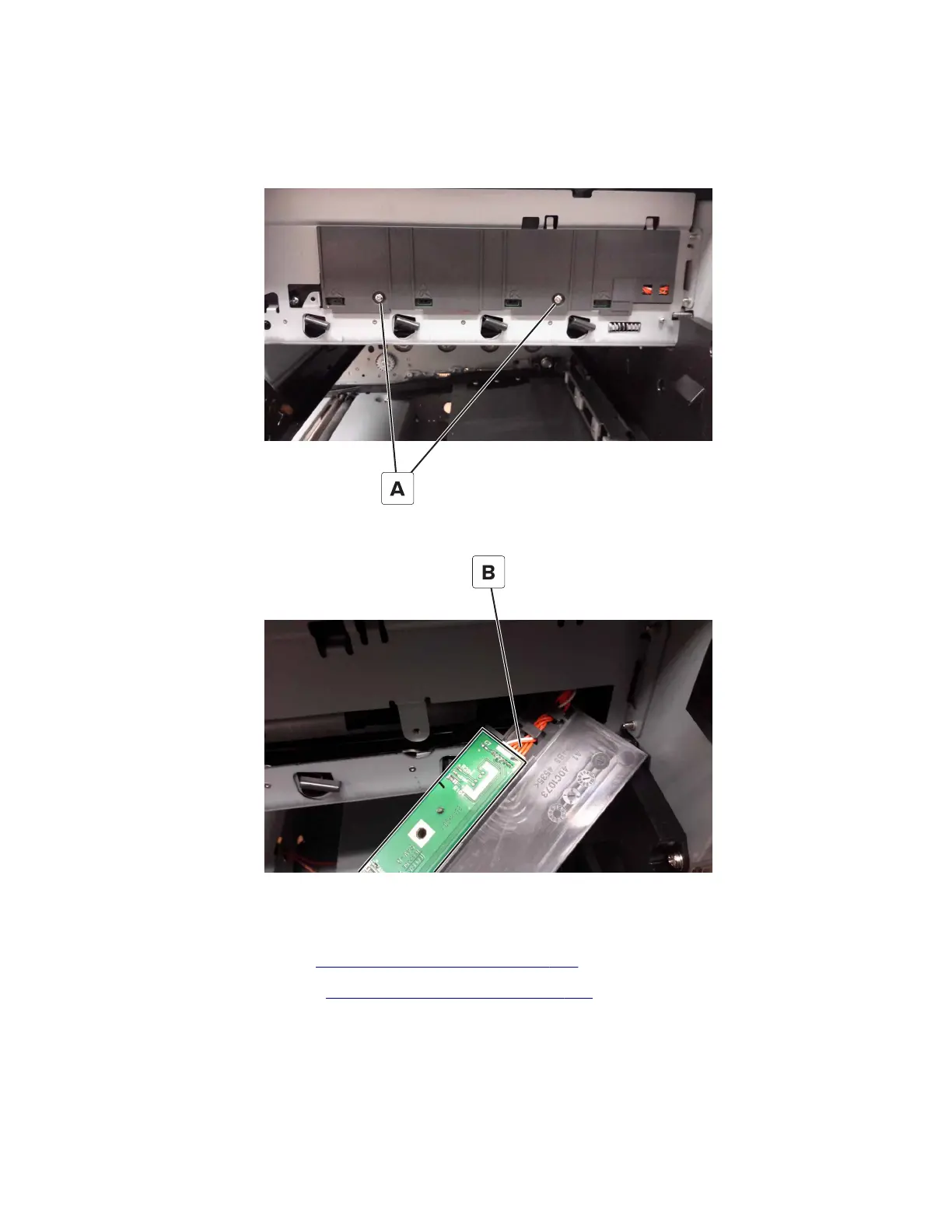

1 Remove the imaging unit.
2 Remove the two screws (A) securing the TMC cover.
3 Disconnect the cable (B), and then remove the TMC card from the cover.
Motor (duplex/MPF) removal
1 Remove the right cover. See “Right cover removal” on page 272.
2 Remove the motor cover. See “Motor cover removal” on page 273.
