Lexmark CS720 - TPS Wiper Mechanism Removal

TPS wiper mechanism removal
1 Remove the waste toner bottle.
2 Remove the motor cover. See “Motor cover removal” on page 273.
3 Remove the right cover. See “Right cover removal” on page 272.

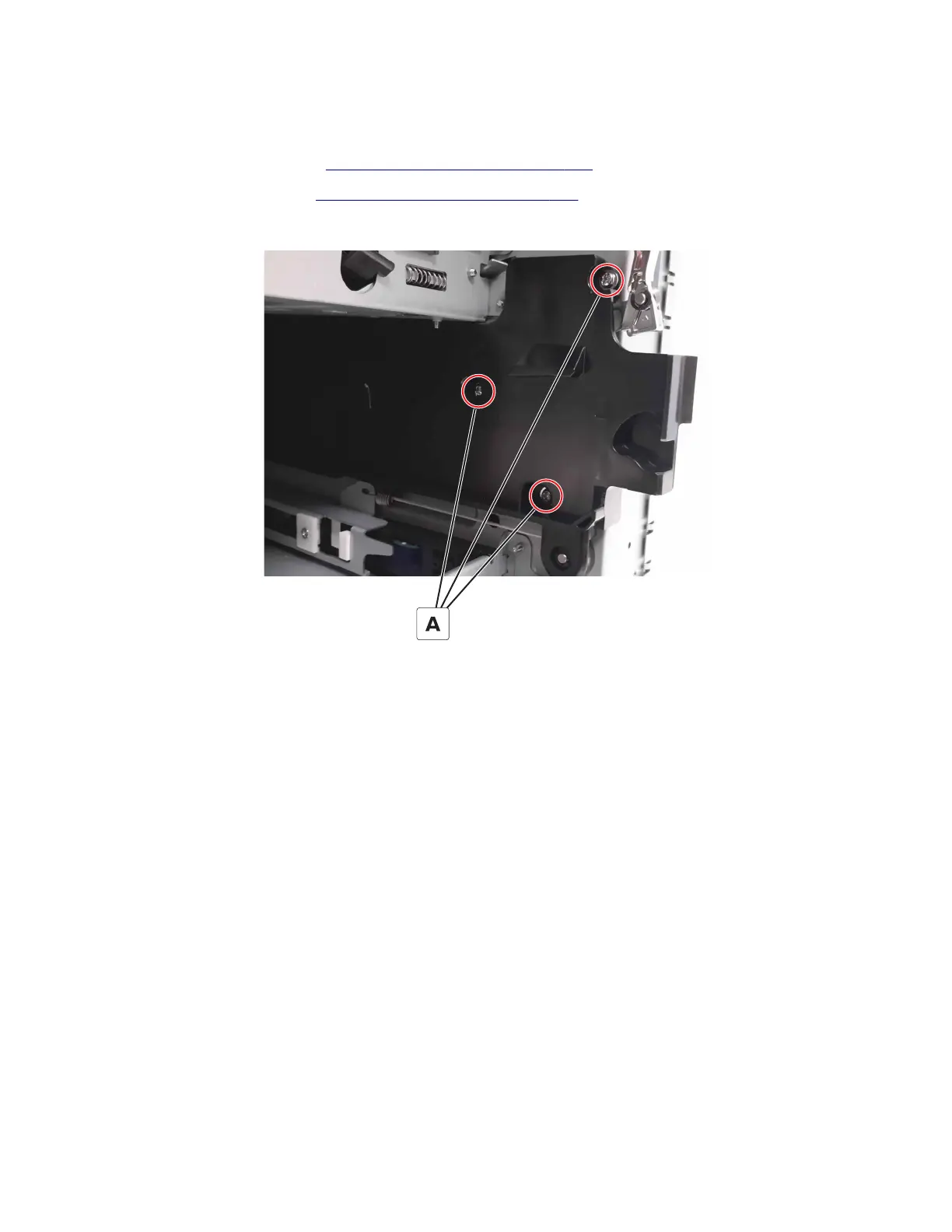

4 Remove the three screws (A).
5028
Repair information
330
