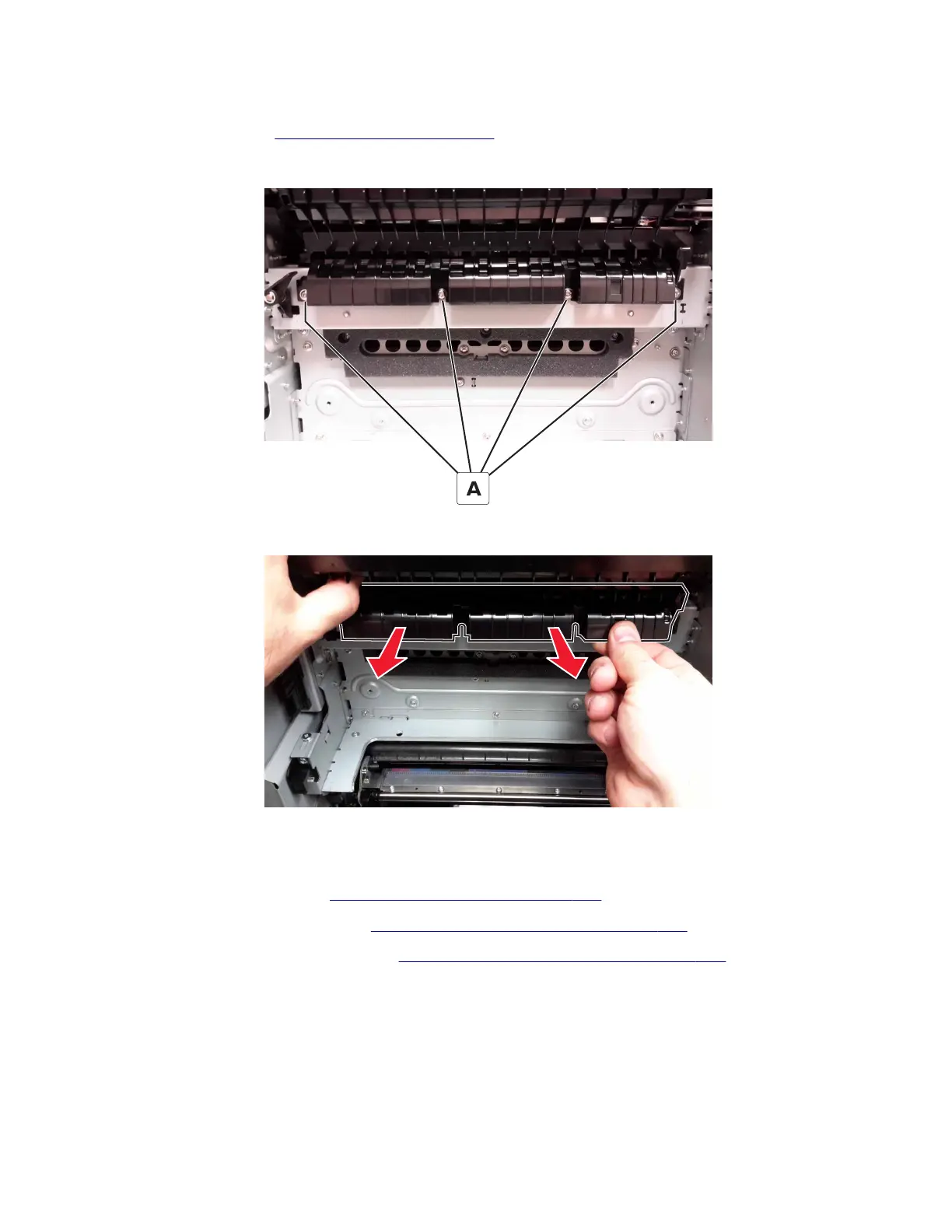

Redrive guide removal
1 Remove the fuser. See “Fuser removal” on page 333.
2 Remove the four screws (A).
3 Hold the redrive deflector up, and then remove the redrive guide.
Sensor (redrive) removal
1 Remove the badge cover. See “Badge cover removal” on page 283.
2 Remove the number pad cover. See “Number pad cover removal” on page 284.
3 Remove the upper controller cover. See “Upper control panel removal” on page 280.
5028
Repair information
354
