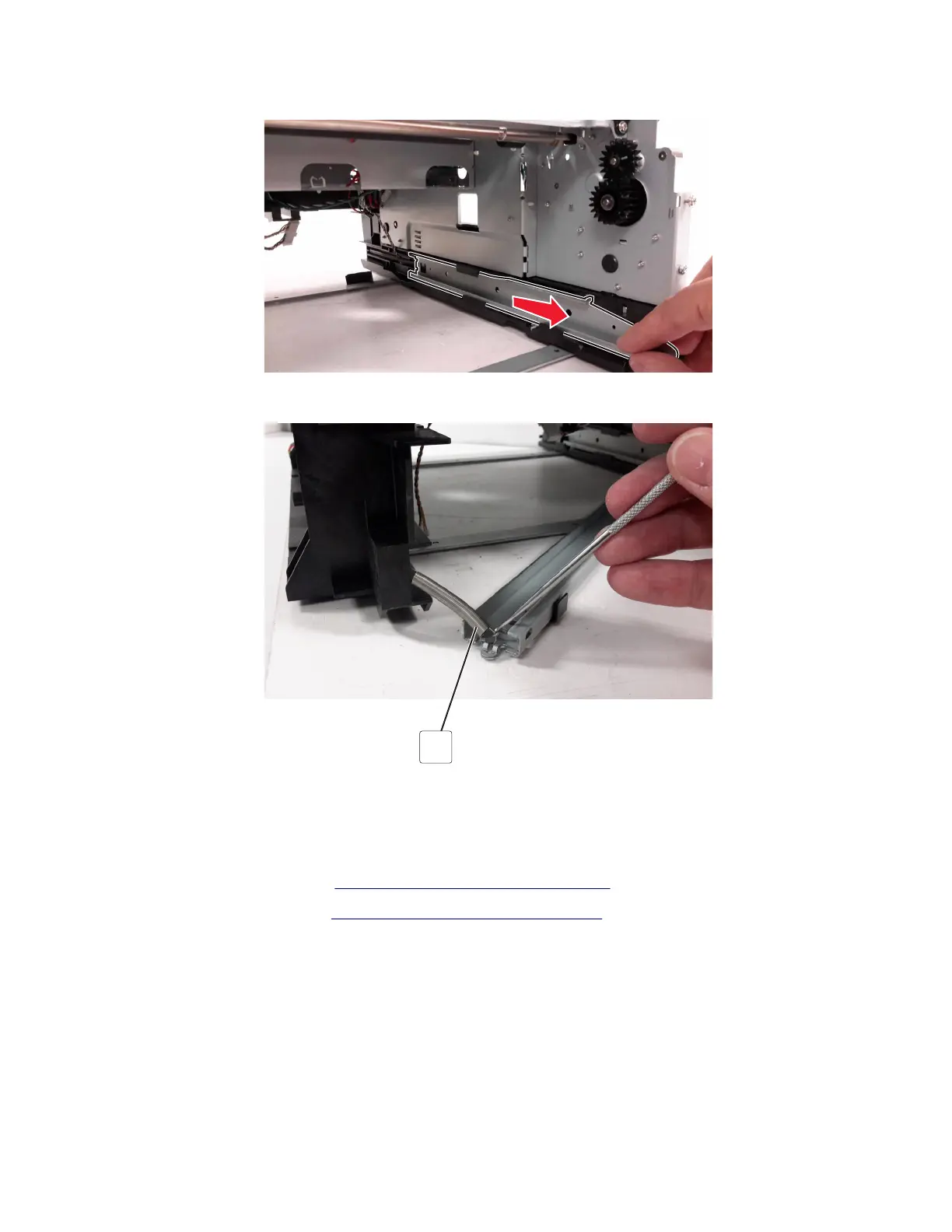

6 Hold the tab in place, and then slide the rail toward the front of the printer to remove.
7 Disconnect the spring (B) from the rail.
B
Aligner idler gears removal
1 Remove the imaging kit.
2 Remove the media feeder. See “Media feeder removal” on page 373.
3 Remove the isolation unit. See “Isolation unit removal” on page 371.
5028
Repair information
370
