Lexmark CS720 - Sensors (Fuser Buckle and Narrow Media) Removal

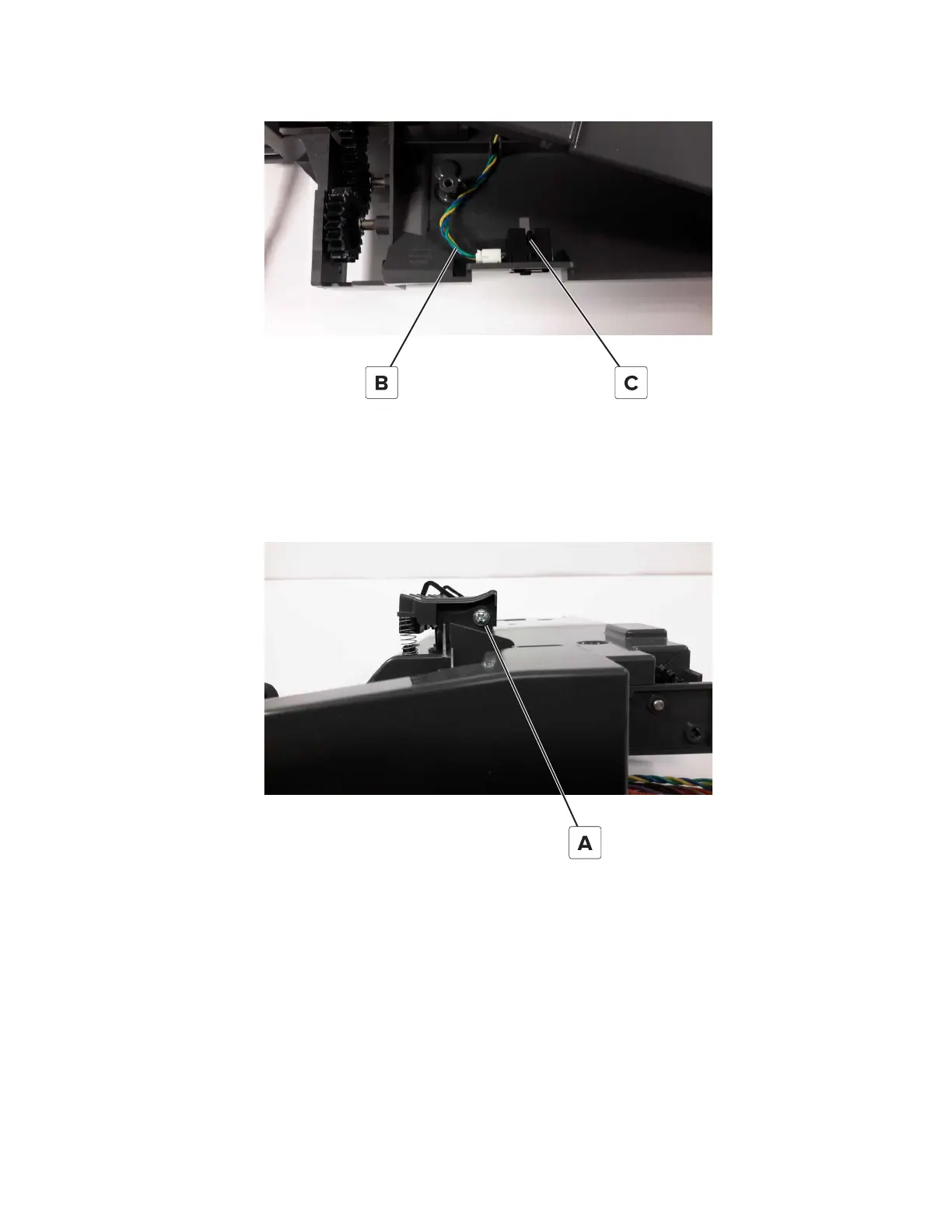

5 Disconnect the sensor cable (B), and then remove the sensor (C).
Sensors (fuser buckle and narrow media) removal
1 Open the front cover.
2 Remove the screw (A).
5028
Repair information
294
