Lexmark CS720 User Manual

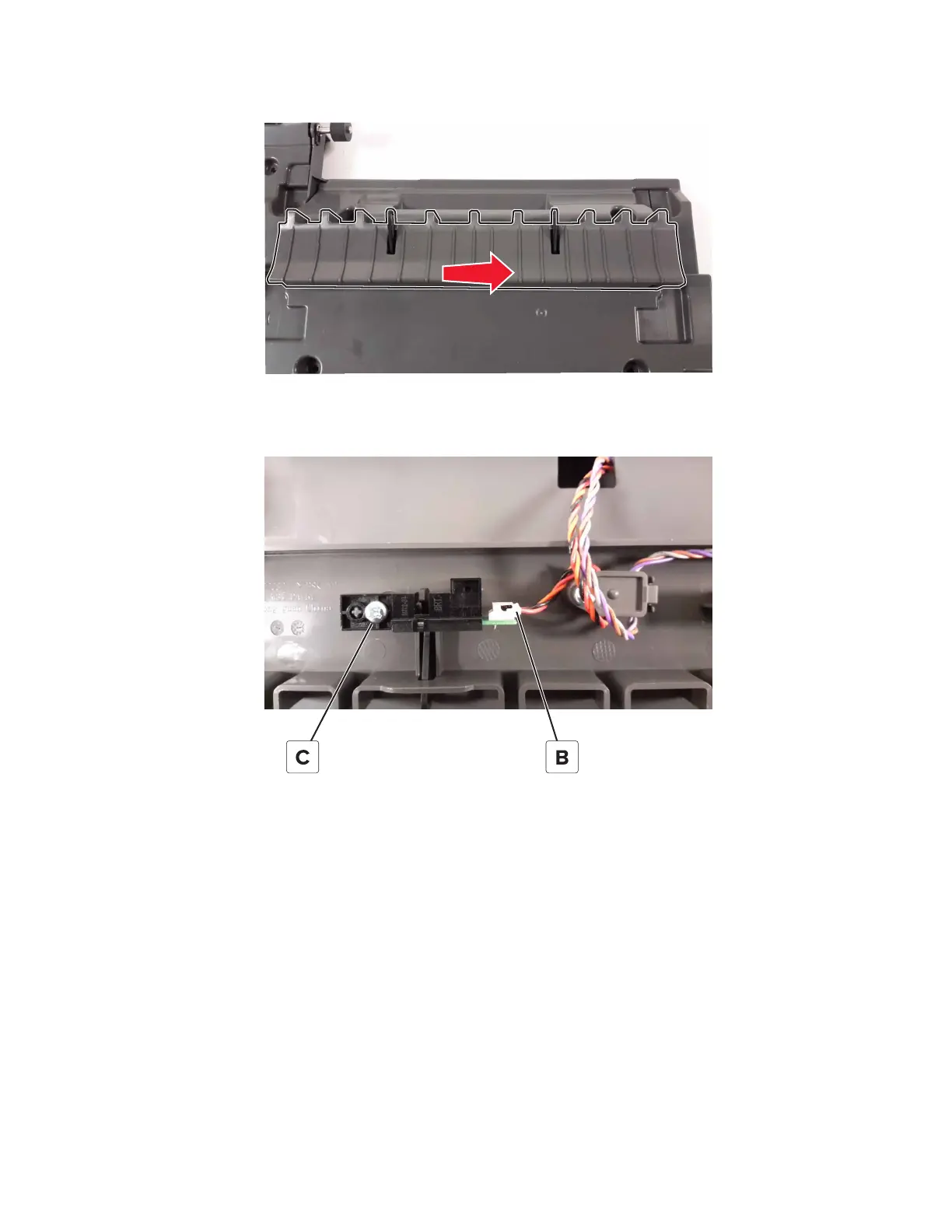

3 Slide the paper guide to the right to remove.
4 Disconnect the sensor cable (B), remove the screw (C), and then remove the sensors.
Note: The left sensor is the sensor (fuser buckle). The right sensor is the sensor (narrow media).
5028
Repair information
295

Lexmark CS720 Specifications

General

Type	Original
Compatibility	- CS720
Product color	Black
Printing colors	Yellow
Country of origin	China
Quantity per pack	1 pc(s)
Brand compatibility	Lexmark
Color toner page yield	7000 pages
Cartridge return & recycling	Yes
Print technology	Laser printing
Harmonized System (HS) code	84439990

Weight and Dimensions

Package depth	160 mm
Package width	190 mm
Package height	75 mm
Package weight	380 g
