Lexmark CS720 - Speaker Removal

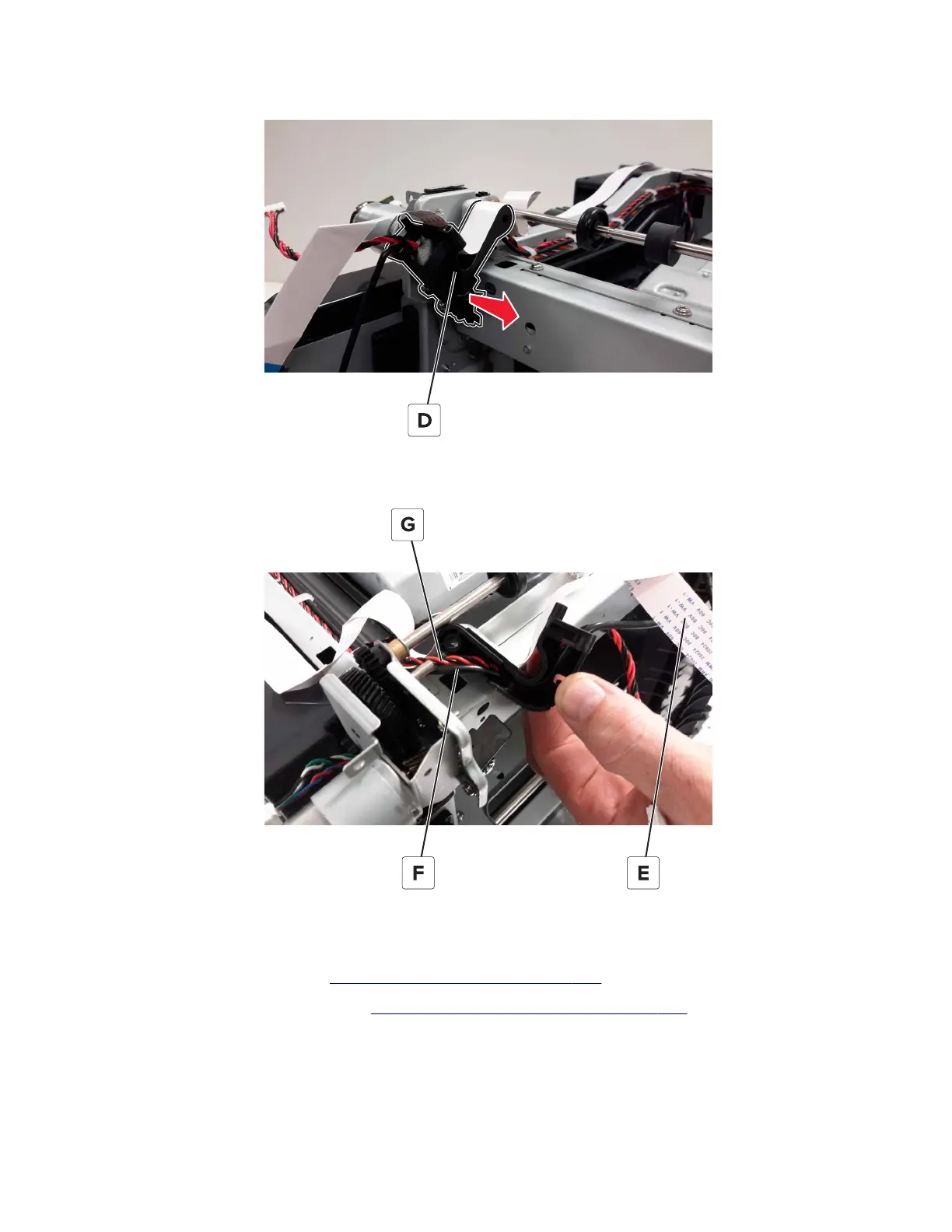

6 Remove the left arm (D) from the mounting pin.
7 Carefully remove the ribbon cable (E), and then route the control panel cable (F) and headphone cable (G)
out of the arm.
Speaker removal
1 Remove the badge cover. See “Badge cover removal” on page 283.
2 Remove the number pad cover. See “Number pad cover removal” on page 284.
5028
Repair information
286
