Lexmark CS720 - EP Gear Box Removal

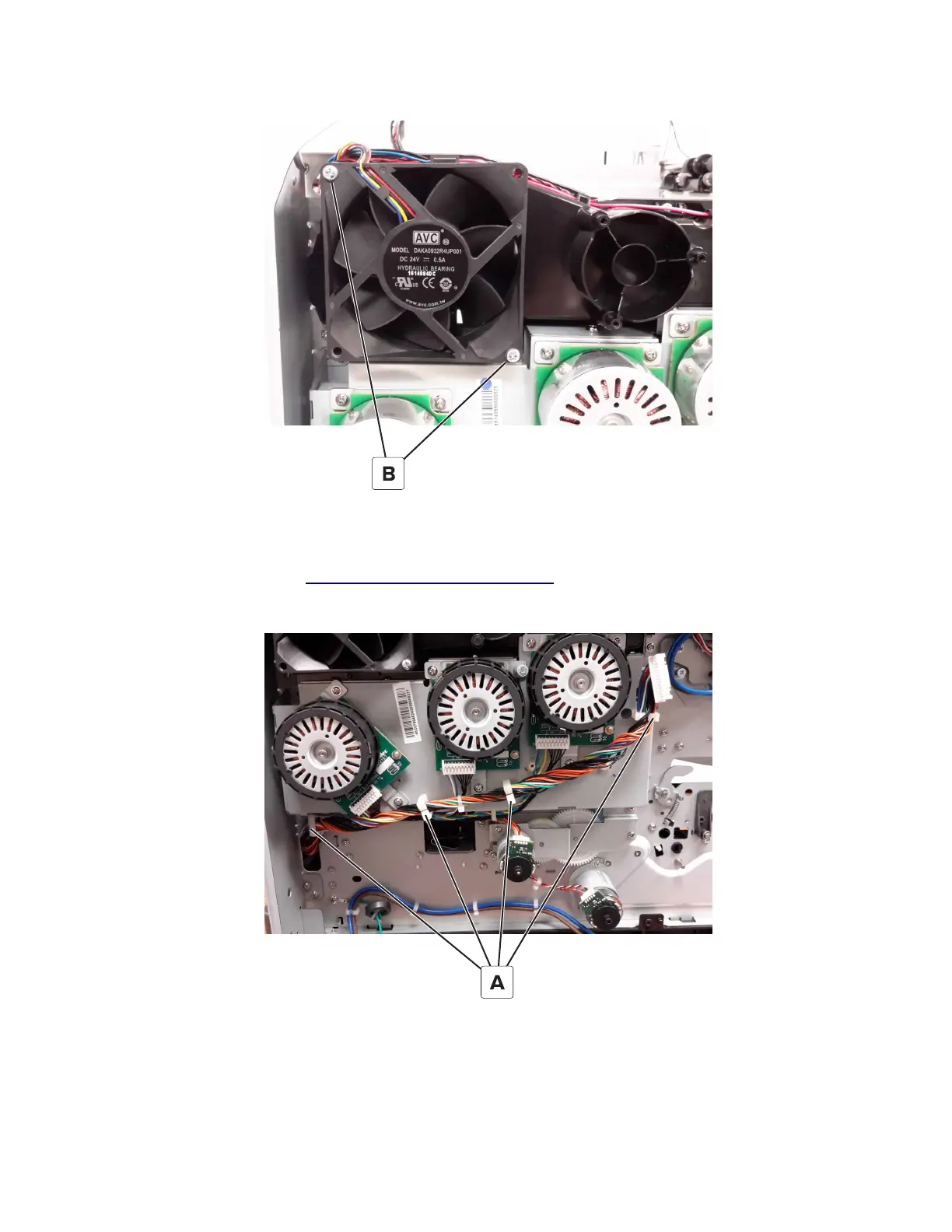

5 Remove the two screws (B), and then route the fan cable through the hole in the frame to remove the fan.
EP gear box removal
1 Remove the left cover. See “Left cover removal” on page 271.
2 Route the cable out of the guides (A).
5028
Repair information
302
