Left side removals
Left cover removal
1 Remove the top cover. See “Top cover removal” on page 455.

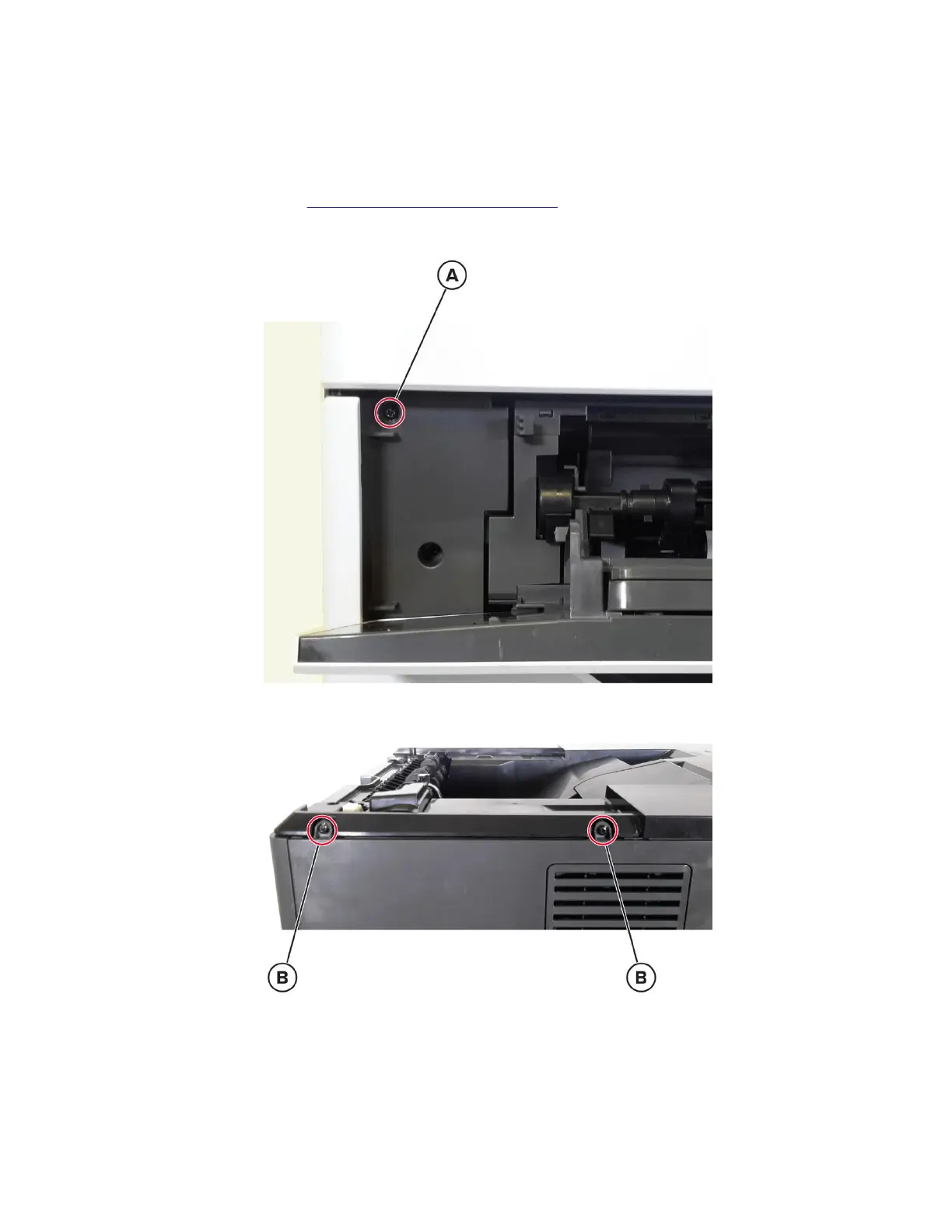

2 Open the MPF door, and then remove the screw (A).
3 Remove the two upper screws (B).
4064
Parts removal
409
