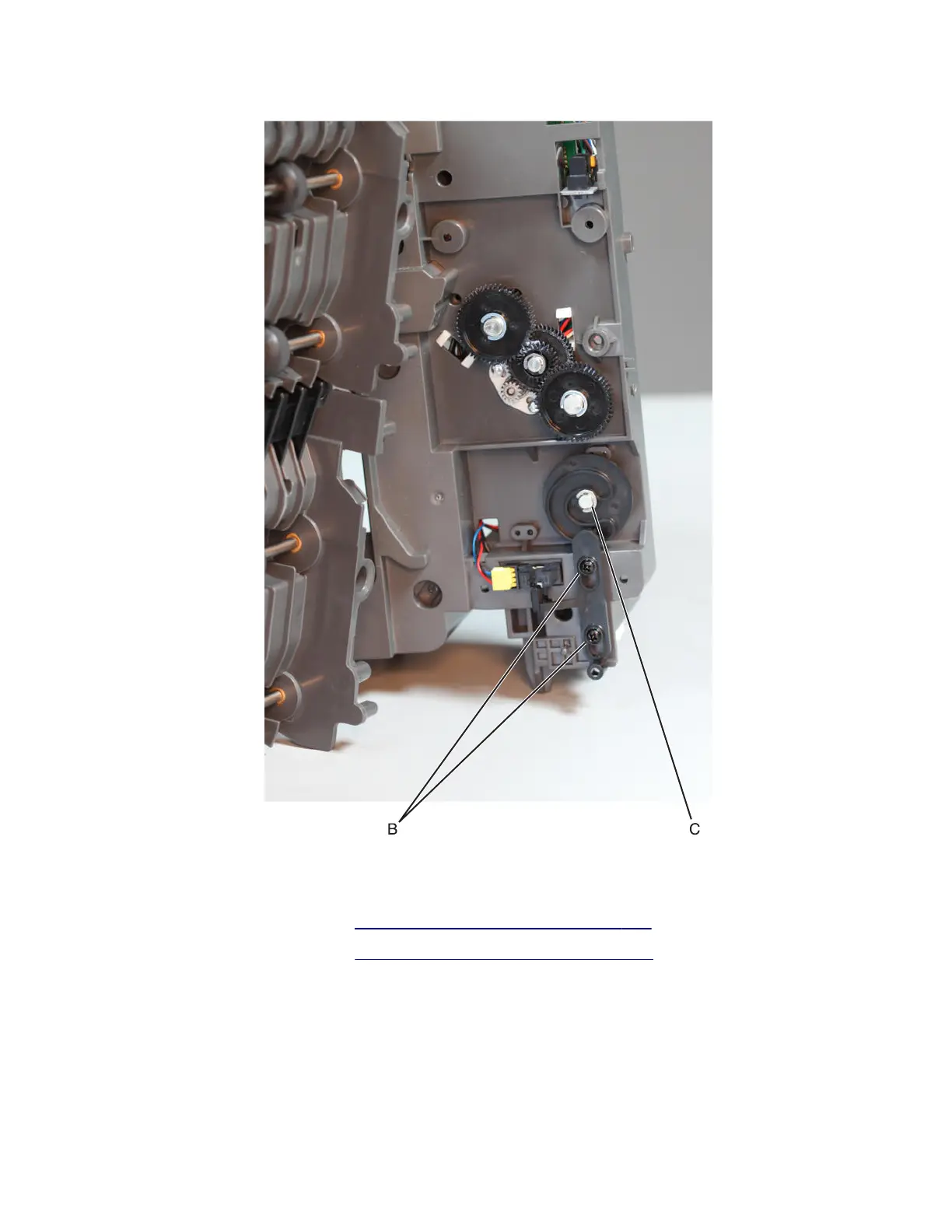

6 Remove the E‑clip (C), and then remove the diverter cam.
HCOE drive gear assembly removal
1 Remove the HCOE rear door. See “HCOE rear door removal” on page 546.
2 Remove the HCOE left cover. See “HCOE left cover removal” on page 550.
4064
Parts removal
566
