HCOE bin pinion removal

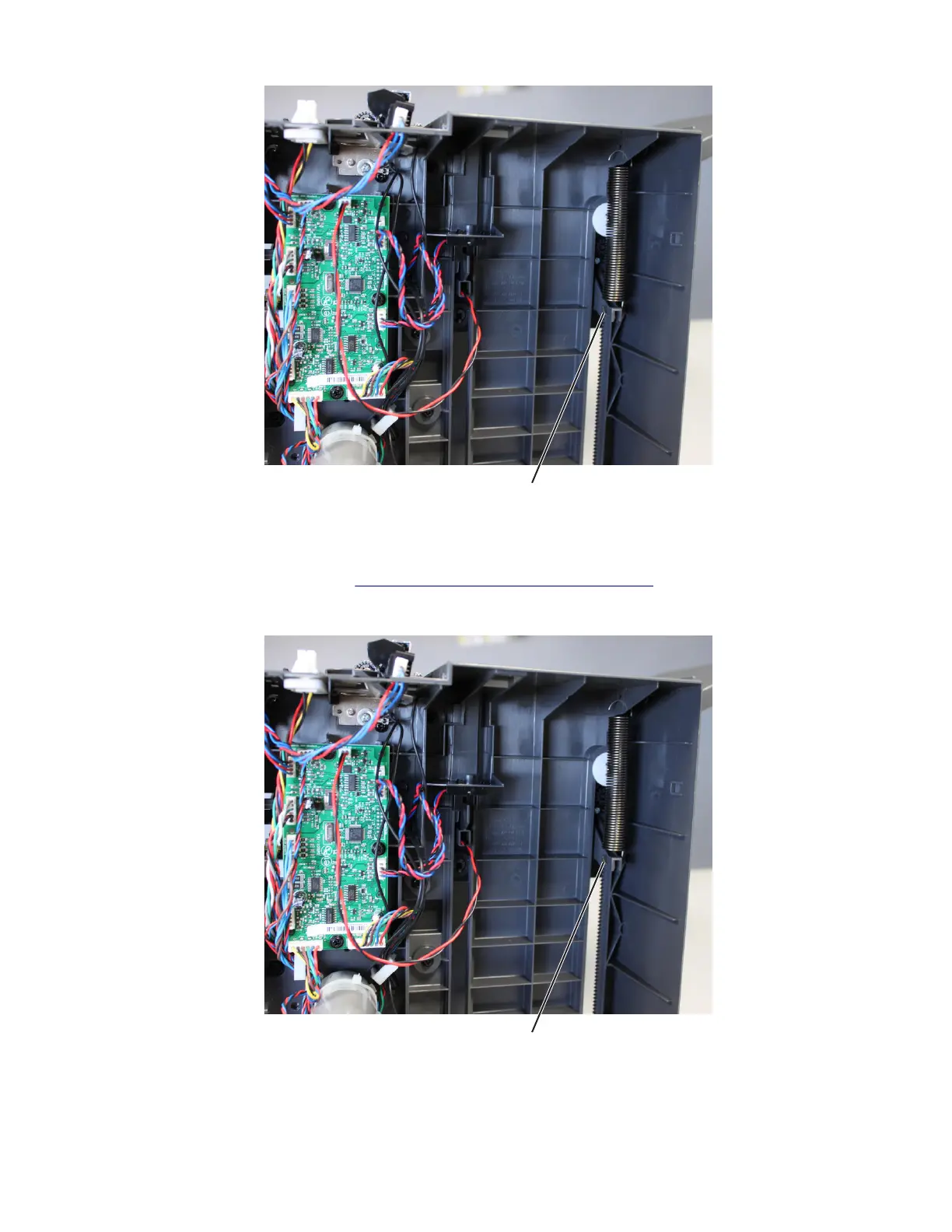

1 Remove the HCOE left cover. See “HCOE left cover removal” on page 550.
2 Unhook the spring (A) to release the HCOE bin.
A
3 Dislodge the E-clip (B), and then remove the pinion.
Note: The pinion on the opposite side can be removed using the same method shown.
4064
Parts removal
558
