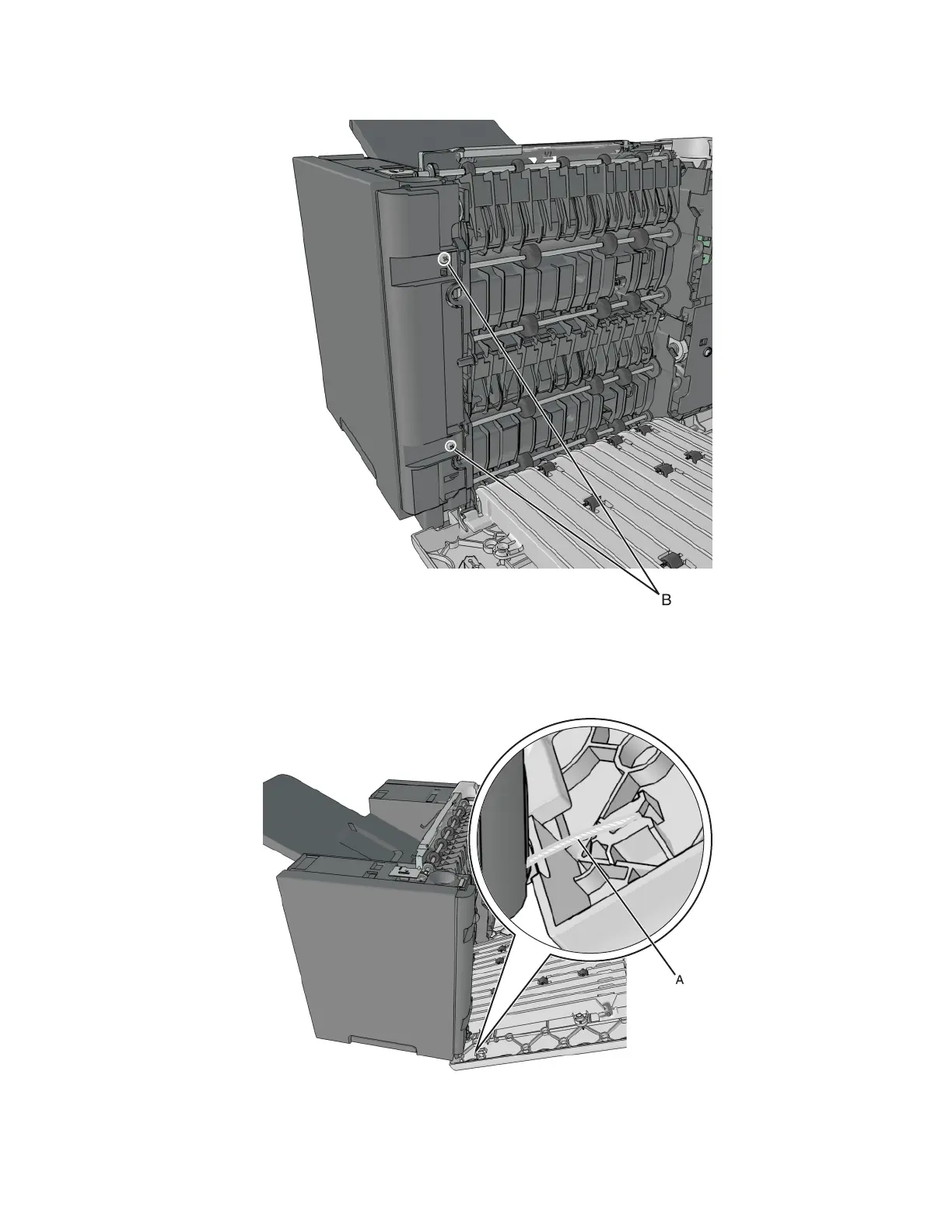

2 Remove the two screws (B), then remove the right cover.
HCOE left cover removal
1 Open the rear door, then detach the string (A) from the rear door.
Note: Fasten the string to the rear side to prevent it from recoiling into the interior of the HCOE.
4064
Parts removal
550
