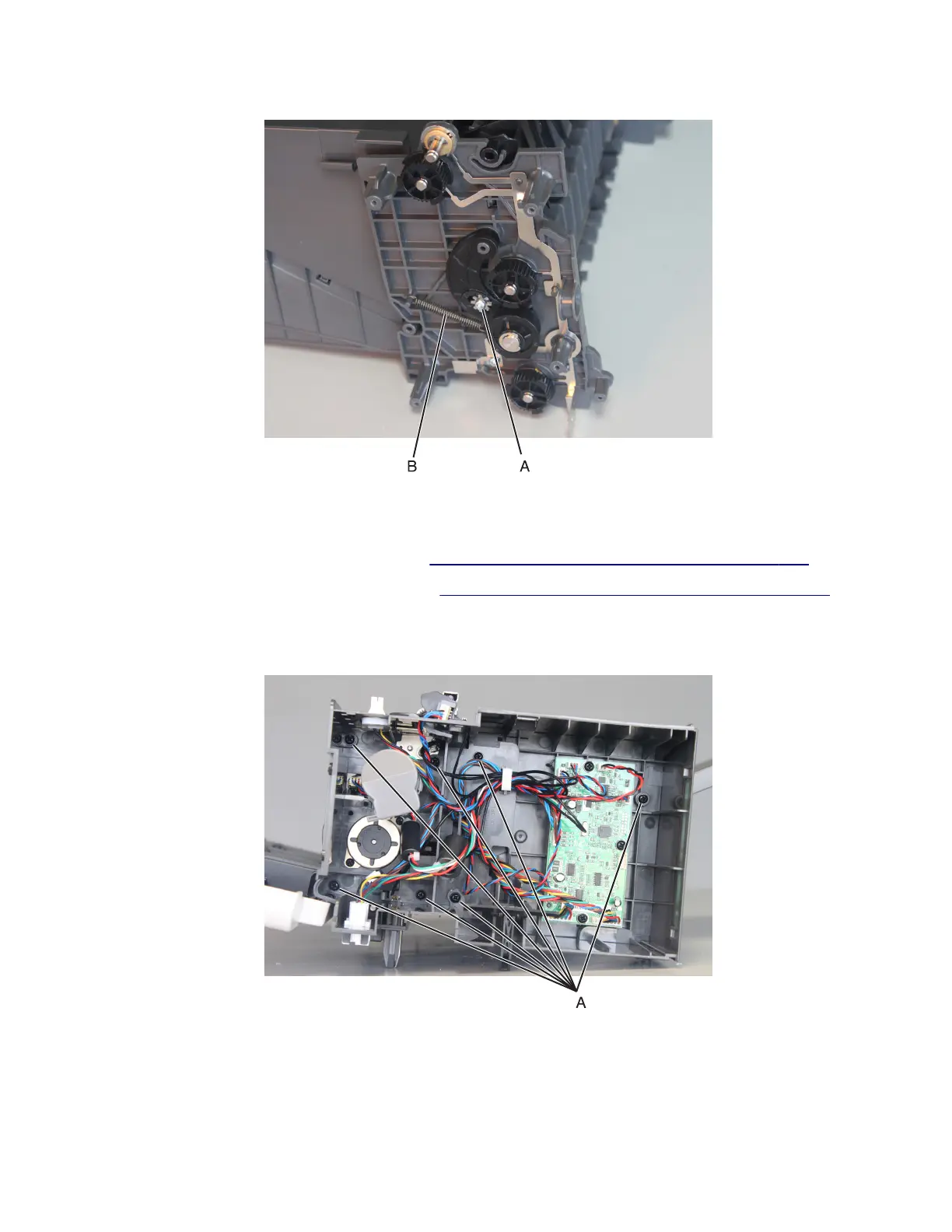

4 Unhook the spring (B) from the frame, and then remove the tensioner from the frame.
Output expander bin removal
1 Remove the output expander left cover. See “Output expander left cover removal” on page 522.
2 Remove the output expander right cover. See “Output expander right cover removal” on page 520.
3 Disconnect the cable J10 from the controller board.
4 Remove the seven screws (A), to release the left inner frame.
4064
Parts removal
541
