HCOE right cover removal

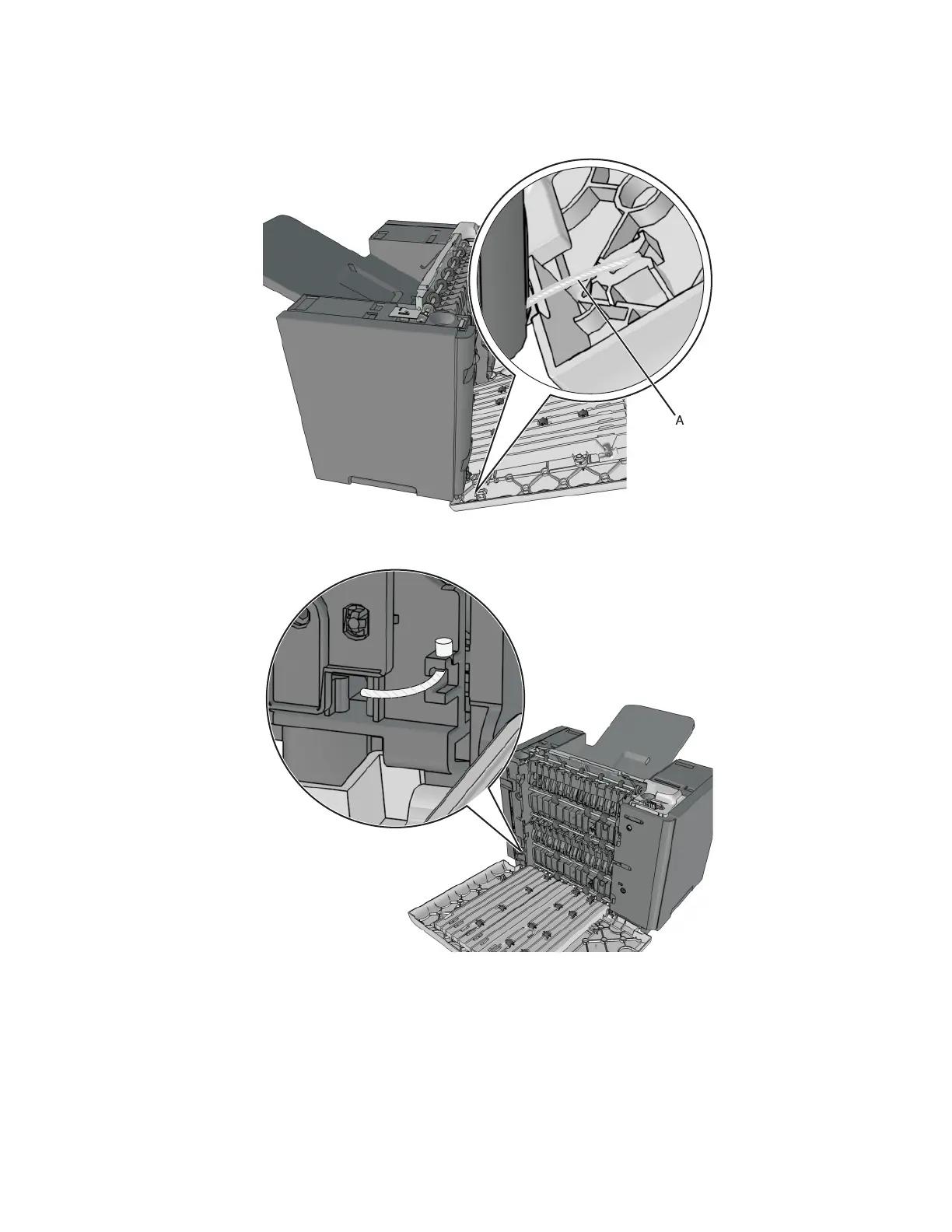

1 Open the rear door, then detach the string (A) from the rear door.
Note: Fasten the string to the rear side to prevent it from recoiling into the interior of the HCOE.
4064
Parts removal
