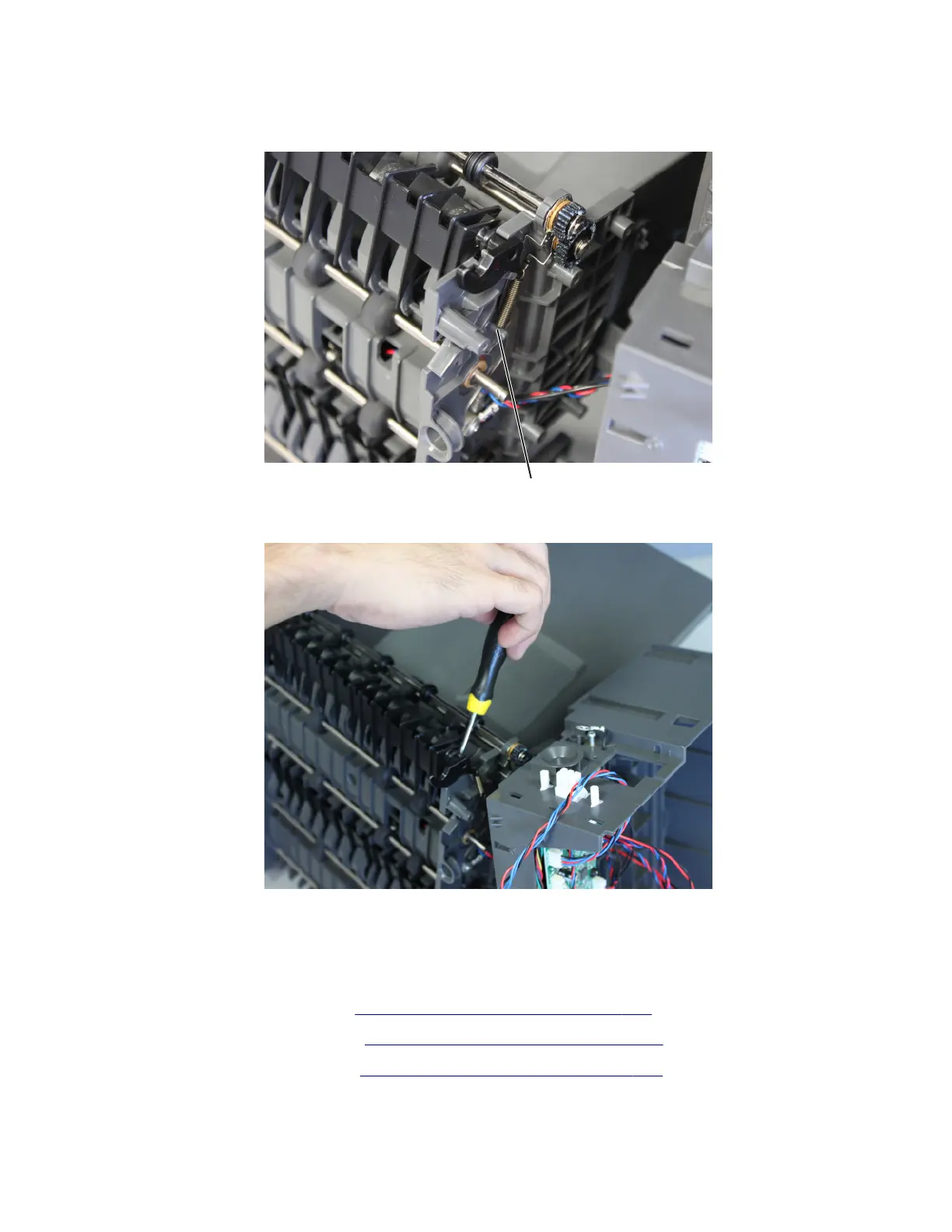

4 Slightly pull away the frame to access the parts underneath it.
5 Unhook the lower end (B) of the spring.
B
6 Pry the right side of the diverter to release, and then remove the diverter.
HCOE bin shaft removal
Note: This part is not a FRU.
1 Remove the HCOE left cover. See “HCOE rear door removal” on page 546.
2 Remove the HCOE right cover. See “HCOE left cover removal” on page 550.
3 Remove the HCOE bin pinion. See “HCOE bin pinion removal” on page 558.
4064
Parts removal
574
